PB Hybrid Standard Cable GP, 2xCu 0.64 mm, 2xCu 1.5 mm2, sold by the meter
SKU: 6XV1860-2R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is PROFIBUS Hybrid Standard Cable GP.
Product Description: Data and energy wire hybrid cable; product supplied by meter; unassembled.
PROFIBUS hybrid standard cable GP; cable with two shielded CUs (1.5 mm2) and two shielded CUs (0.64 mm); supplied by the meter; maximum delivery unit: 1000 m; minimum order quantity: 20 m.
Suitability for use: Trailing-type, hybrid cable used for supplying data and power to ET 200pro.
Cable designation: 02Y(ST)C 1x2x0.65/2.56-150LI LIY-Z Y 2x1x1.5 VI.
Electrical data:
Attenuation factor per length:
At 9.6 kHz / maximum: 0.004 dB/m.
At 38.4 kHz / maximum: 0.004 dB/m.
At 4 MHz / maximum: 0.025 dB/m.
At 16 MHz / maximum: 0.049 dB/m.
Impedance:
Rated value: 150 Ω.
At 9.6 kHz: 270 Ω.
At 38.4 kHz: 185 Ω.
At 3 MHz … 20 MHz: 150 Ω.
Relative symmetrical tolerance:
Of the characteristic impedance at 9.6 kHz: 10 %.
Of the characteristic impedance at 38.4 kHz: 10 %.
Of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
Loop resistance per length / maximum: 138 mΩ/km.
Shield resistance per length / maximum: 10 Ω/km.
Insulation resistance coefficient: 20 GΩ·m.
operating voltage / maximum: 80 V.
Capacity per length / at 1 kHz: 30 pF/m.
Operating voltage / RMS value: 300 V.
conductor cross section / of the power line: 1.5 mm².
Continuous current / of the power lines: 7.5 A.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:

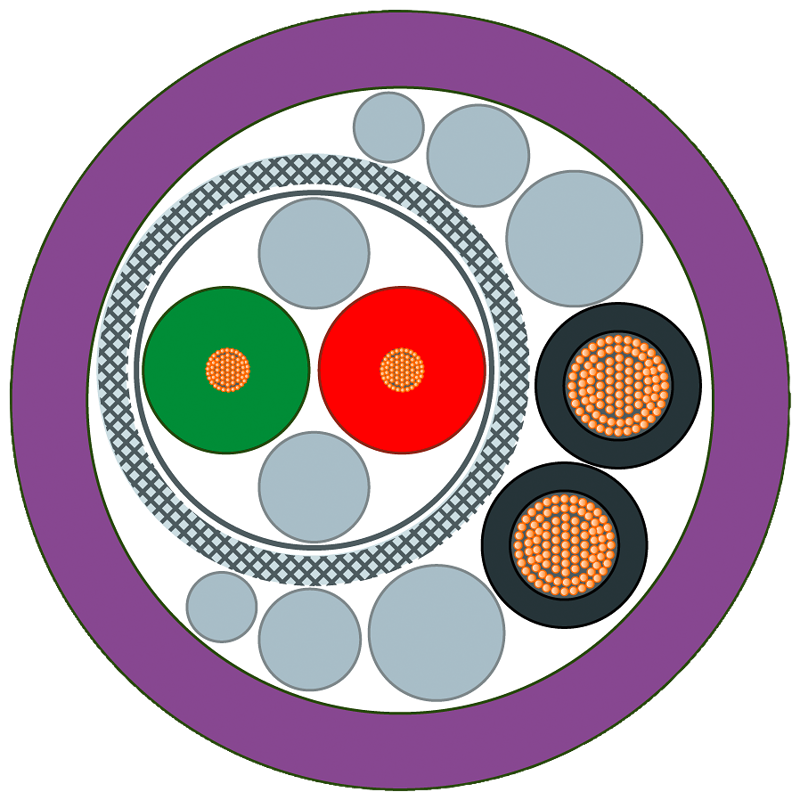

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Number of electrical cores: 4.
Type of electrical connection / FastConnect: No.
Outer diameter:
Of inner conductor: 0.67 mm.
Of the wire insulation: 2.56 mm.
Of cable sheath: 11 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.5 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: red / green.
Of the power line insulation: Black.
Of cable sheath: Violet.
Bending radius:
With single bend / minimum permissible: 44 mm.
With multiple bends / minimum permissible: 125 mm.
number of bending cycles: 1000000; For use in cable carriers, for 1 million bending cycles with a bending radius of 125 mm and an acceleration of 2.5 m/s².
Tensile load / maximum: 450 N.
Weight per length: 140 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +75 °C.
During storage: -40 ... +75 °C.
During transport: -40 ... +75 °C.
During installation: -40 ... +75 °C.
Note: Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0490.
Fire behaviour: flame-retardant according to IEC 60332-1-2.
Class of burning behaviour / according to EN 13501-6: Eca.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: Not resistant.
Product features, product functions, product components / general:
Product feature:
Halogen-free: No.
Silicon-free: Yes.
Standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(ETL)us 3047254 CMG FT4 75°C.
UL/ETL style / 600 V Rating: Yes.
Certificate of suitability:
EAC approval: Yes.
RoHS conformity: Yes.
Reference code:
According to IEC 81346-2:2019: WZA.
