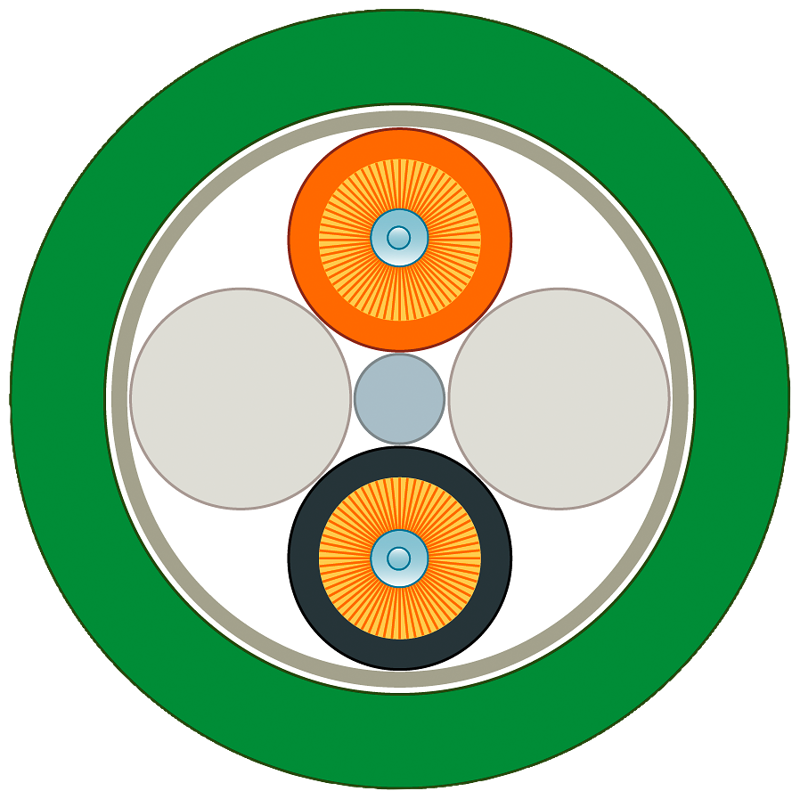

PCF standard cable GP 200/230, 2x 2 ST plug, pulling aid, UL, 100 m
SKU: 6XV1861-3AT10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
PCF Fiber-optic cable with plastic coating, preassembled to your preferred length.
Pre-assembled PCF Standard Cable with 2x2 BFOC plugs and an insertion assist, 100 m in length.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for permanent installation indoors and outdoors, UL approval.
Wire length: 100 m.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Step index Fiber 200/230 µm.
Outer diameter:
Of the optical Fibers: 200 µm.
Of the optical Fiber sheath: 230 µm.
Of the FOC core sheath: 2.2 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 7.2 mm.
Symmetrical deviation / of the outer diameter of the line: 0.5 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Special polymer.
Of the FOC core sheath: PVC.
Of the Fiber-optic cable sheath: PVC.
Of the strain relief: Aramid Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: Green.
Bending radius:
With single bend / minimum permissible: 70 mm.
With multiple bends / minimum permissible: 105 mm.
Tensile load:
During installation / short-term: 800 N.
During operation / maximum: 100 N.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -25 ... +75 °C.
During transport: -25 ... +75 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP20.
Product feature: silicon-free.
Wire length:
For PCF FOC / for Industrial Ethernet / maximum: 100 m.
For PCF FOC / with PROFIBUS / maximum: 400 m.
