IE FC TP Flexible Cable GP 2X2 (PROFINET type B), 4-wire, shielded
SKU: 6XV1870-2BU10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible bus cable (4-core), sold by the meter, unassembled.
Industrial Ethernet FC TP flexible cable GP 2x2 (PROFINET type B); TP installation cable with flexible cores; 4-core, shielded; Cat5e for connection to IE FC RJ45 Plug 2x2, AWG22; 1000 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For occasionally moved machine parts.
Wire length: 1000 m.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 20 mΩ/m.
Loop resistance per length / maximum: 120 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

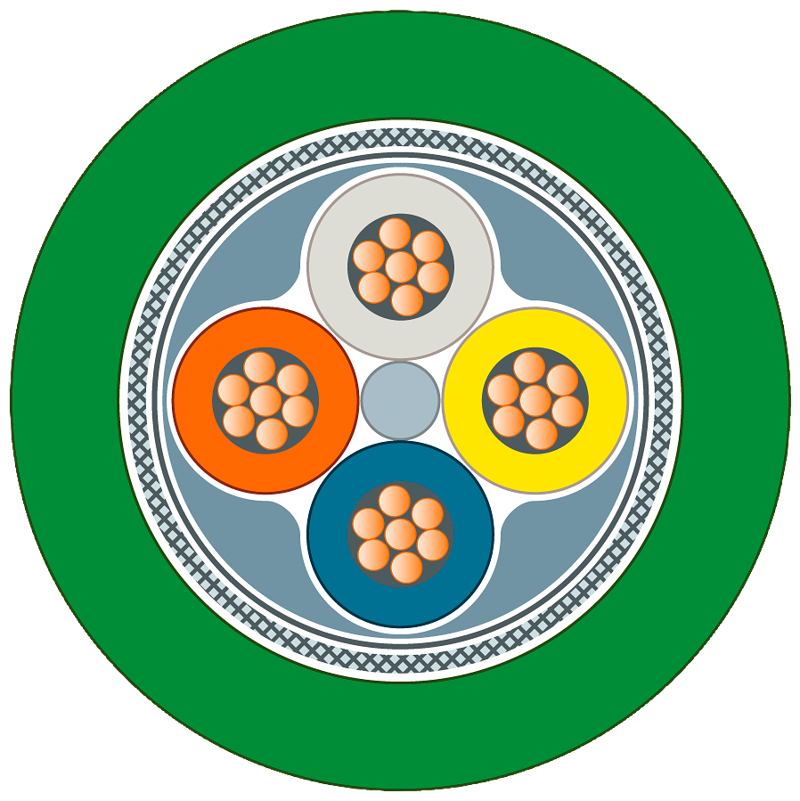

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 52 mm.
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -25 ... +75 °C.
During storage: -25 ... +75 °C.
During transport: -25 ... +75 °C.
During installation: -10 ... +60 °C.
Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-404 (7x24h/90°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature: silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 85 m.
