IE FC TP trailing cable GP (type C) 2x2, AWG 22, Cat 5e, sold by meter, min. 20m
SKU: 6XV1870-2D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Unassembled, very flexible 4-core bus cable is sold by the meter.
Industrial Ethernet FC TP trailing cable GP 2x2 (PROFINET Type C), TP installation cable for cable carrier applications, 4-core, shielded Cat5e, offered by the meter (3 million bending cycles), delivery unit up to 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Continuous motion control in a cable carrier.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 20 mΩ/m.
Loop resistance per length / maximum: 120 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

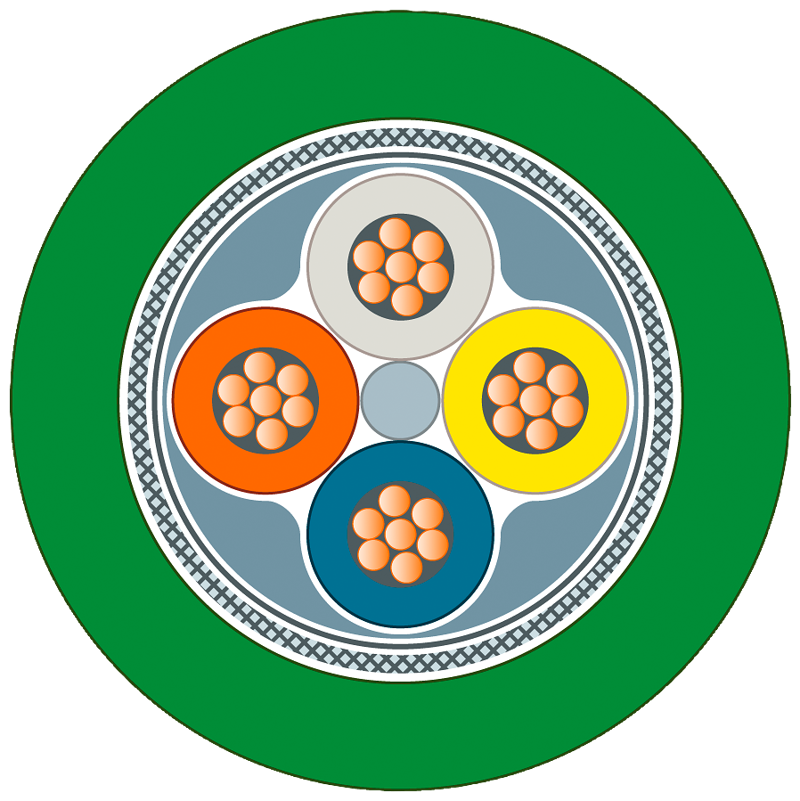

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 49 mm.
With continuous bending: 100 mm.
Number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -25 ... +75 °C.
During storage: -25 ... +75 °C.
During transport: -25 ... +75 °C.
During installation: -10 ... +60 °C.
Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-404 (7x24h/90°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature: silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 85 m.
