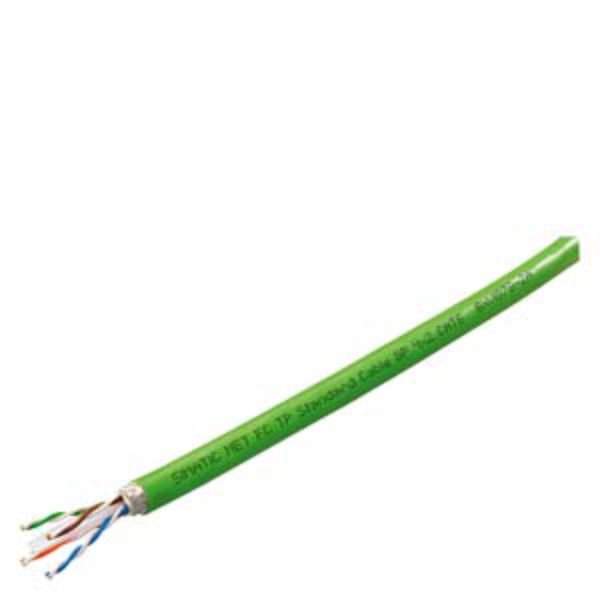

IE FC TP Standard Cable 4x2 by meter, Minimum Order Quantity 20m
SKU: 6XV1870-2E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This is a CAT6A-rated, 8-core twisted pair cable with AWG22 solid conductors, sold by the meter for custom-length installations.
It’s optimized for Fast Connect (FC) assembly, making it ideal for structured cabling between RJ45 plugs, modular outlets, and SCALANCE switches in demanding automation networks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: IE FC TP Standard Cable GP 4x2 (AWG22).
Category: CAT6A.
Conductor Type: Solid (rigid).
Conductor Size: AWG22 (0.64 mm diameter).
Shielding: Foil + braided copper screen.
Outer Diameter: 9.6 mm.
Impedance: 100 Ω ±5% (1–100 MHz).
Max Length (per reel): 1000 m.
Min Order Quantity: 20 m.
Bending Radius: 38 mm (single); 80 mm (multiple).
Tensile Load: 180 N.
Flame Resistance: IEC 60332-1.
UV Resistance: Yes.
Oil Resistance: IEC 60811-2-1 compliant.
Operating Temp: –40 °C to +80 °C.
Ethernet Support: 100BaseTX / 1000BaseT (up to 90 m).
PoE / PoE+ Support: Yes.
Fast Connect Compatible: Yes
