IE TP torsion cable (type C) 2x2, AWG 22, Cat 5e, sold by the meter, min. 20 m
SKU: 6XV1870-2F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
4 core bus cable, highly flexible, sold by the meter, unassembled.
Industrial Ethernet TP Torsion Cable, 2x2 (PROFINET Type C), TP installation cable, 4-core, shielded Cat5e, for highly flexible applications (torsion), supplied by the meter, delivery length up to 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Continuous motion control when using robots.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 100 mΩ/m.
Loop resistance per length / maximum: 120 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

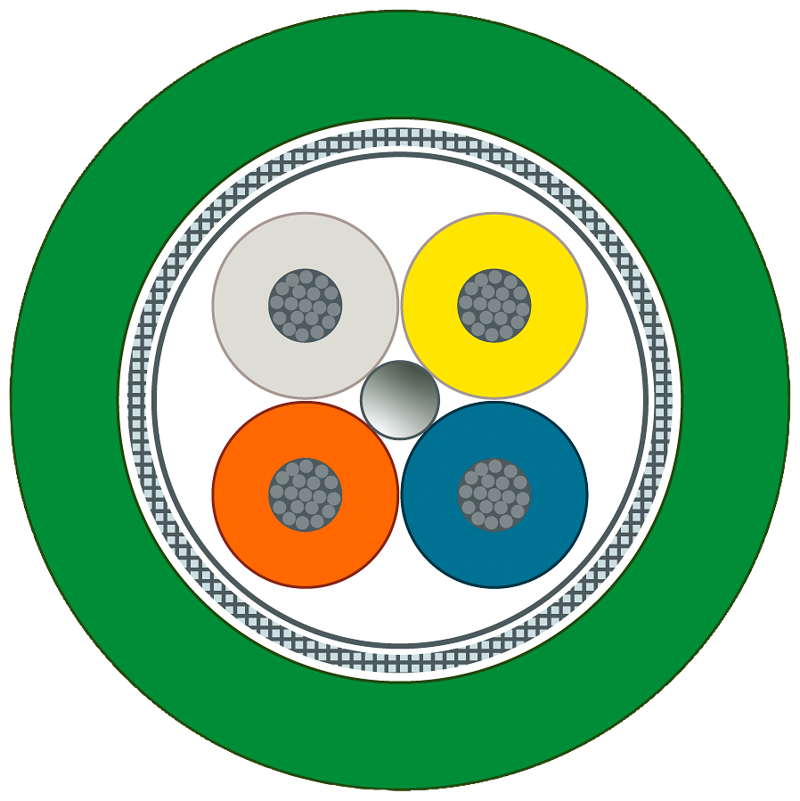

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.76 mm.
Outer diameter:
Of inner conductor: 0.76 mm.
Of the wire insulation: 1.5 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PUR (TPE-U).
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 65 mm.
Number of bending cycles: Not suitable for garland usage.
Number of torsion cycles / with torsion by ± 180° on 1 m cable length: 5000000.
Tensile load / maximum: 130 N.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -20 ... +60 °C.
Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (7x24h/90°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 75 m.
