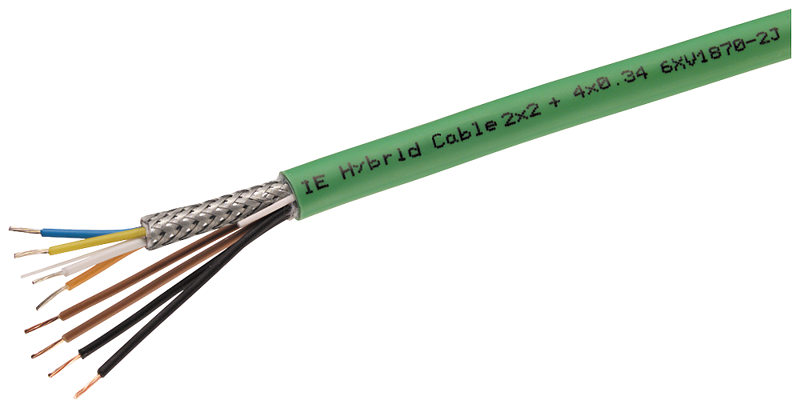

IE Hybrid Cable 2x2+4x0.34, 4xCu 0.75 mm + 4xCu 0.34 mm2, sold by the meter
SKU: 6XV1870-2J
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Hybrid cable (data and energy wires), offered by the meter and unassembled.
Industrial Ethernet Hybrid Cable 2x2+4x 0.34, flexible cable, 4x CU CAT5, shielded (0.75 mm), and 4x CU (0.34 mm2) for IE FC modular outlet with power insert and IP67 hybrid plug-in connector.
Sold by the meter; maximum delivery unit 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Ethernet hybrid cable for transfer of data and power.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 10 mΩ/m.
Loop resistance per length / maximum: 120 Ω/km.
Operating voltage / maximum: 80 V.
Operating voltage, RMS value: 100 V.
Conductor cross section / of the power line: 0.34 mm².
Continuous current / of the power lines: 5 A.
Mechanical data:
Number of electrical cores: 8.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.76 mm.
Outer diameter:
Of inner conductor: 0.76 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 8.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: FRNC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of the power line insulation: Black/brown.
Of cable sheath: Green.
Bending radius:
With single bend / minimum permissible: 42.5 mm.
With multiple bends / minimum permissible: 85 mm.
Tensile load / maximum: 260 N.
Ambient temperature:
During operation: -25 ... +70 °C.
During storage: -25 ... +70 °C.
During transport: -25 ... +70 °C.
During installation: -25 ... +70 °C.
Electrical properties measured at 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0490.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length / with 100BaseTX / for Industrial Ethernet: 100 m.
