IE TP Cord RJ45/RJ45, 4x2, 2xRJ45 plugs 4x2, CAT6A, 3 m
SKU: 6XV1870-3QH30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, 4x2, pre-assembled with two RJ45 connections, 3 m in length.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Easy connection of terminal devices to the IE FC cabling system.
Wire length: 3 m.
Number of electrical connections: 2
Operating voltage, RMS value: 80 V.

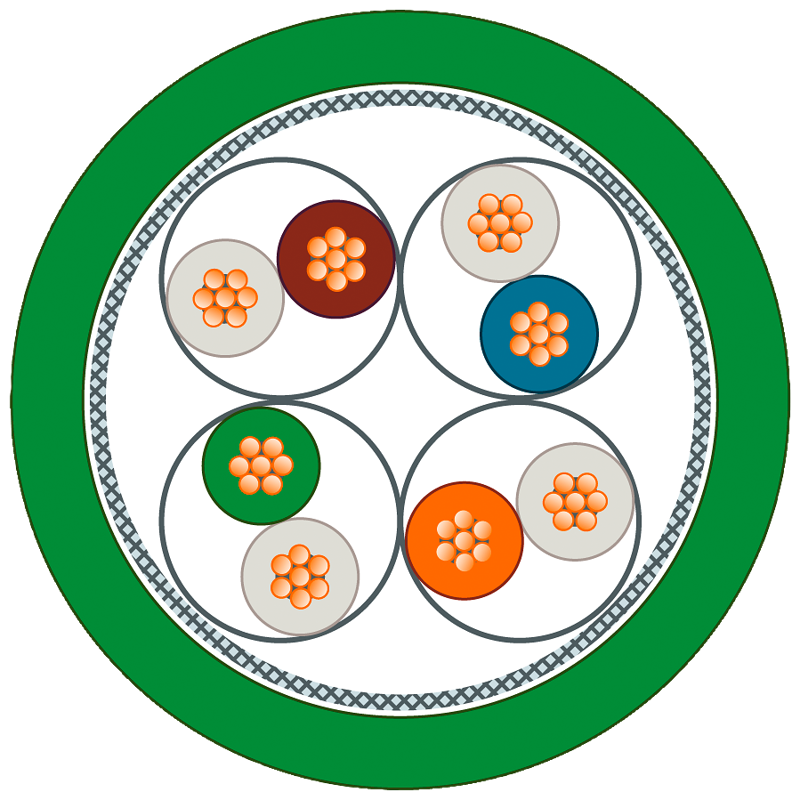

Number of electrical cores: 8.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG26 insulated conductor: 0.5 mm.
Outer diameter:
Of inner conductor: 0.5 mm.
Of the wire insulation: 1 mm.
Of cable sheath: 6.2 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: FRNC.
Colour:
Of the insulation of data wires: white/blue, white/orange, white/green, white/brown.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 31 mm.
With multiple bends / minimum permissible: 43.5 mm.
Plug:
Connector type: RJ45.
Type of plug interlock: latched.
Design of plug-in connection: RJ45-180.
Ambient temperature:
During operation: -25 ... +80 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
During installation: -25 ... +80 °C.
In fixed installation: -40 °C to 80 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
Radiological resistance / to UV radiation: not resistant.
Protection class IP: IP20.
Product feature:
Halogen-free.
Silicon-free.
