IE cable M12-180/M12-180 2x2, M12 plug (D-coded), Cat 5e, 20 m
SKU: 6XV1870-8AN20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE Connecting Cable M12-180/M12-180.
Product Description: Flexible plug-in cable (4-wire), desired length, prefabricated with two 4-pole M12 connectors (D-coded, 180° cable outlet).

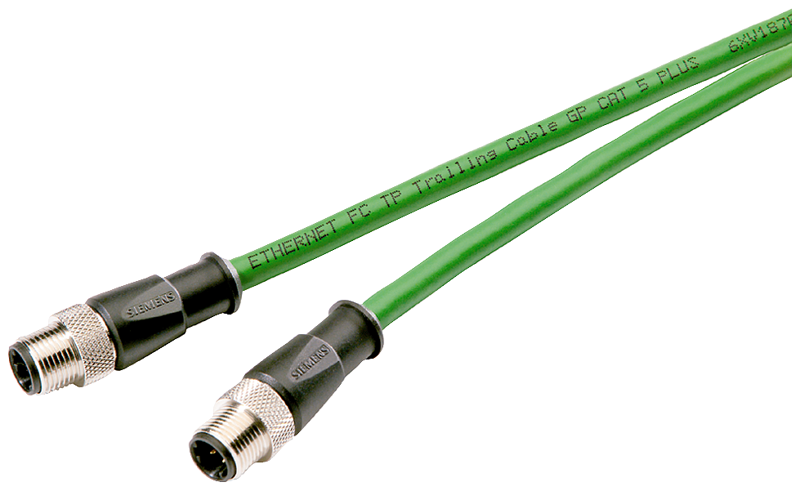

Industrial Ethernet Cable M12-180/M12-180, pre-assembled IE FC. Trailing cable GP with 2 M12 connectors (D-coded). length: 20.0 m.
Suitability for use: For connecting Industrial Ethernet stations (e.g. SIMATIC ET200 and SCALANCE XP-200) in IP 65/67 degree of protection.
cable designation: 2YY (ST) CY 2x2x0,75/1,5-100 LI GN.
wire length: 20 m.
electrical data:
number of electrical connections: 2.
attenuation factor per length:
at 10 MHz / maximum: 0.063 dB/m.
at 100 MHz / maximum: 0.213 dB/m.
impedance:
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance:
of the characteristic impedance at 1 MHz … 100 MHz: 5 %.
near-end crosstalk per length:
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 20 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage:
RMS value: 80 V.
NVP value in percent: 66 %.
