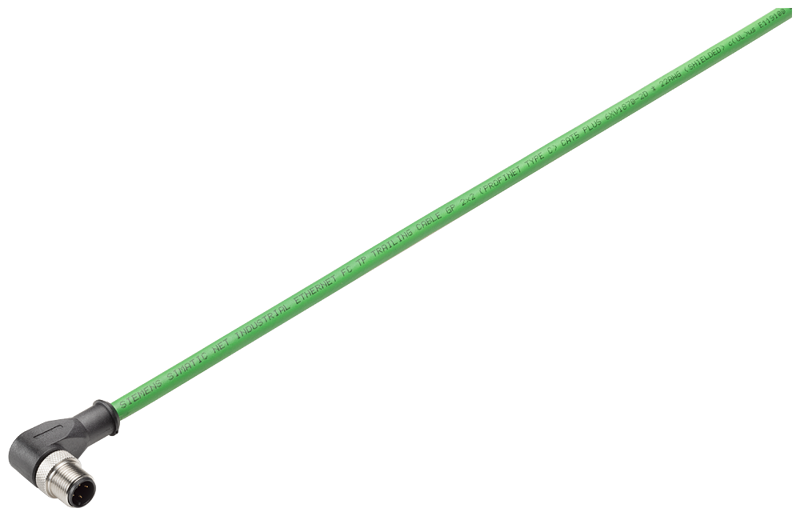

IE cable M12-90/M12-90 2x2, 2x M12 plug (D-coded), Cat 5e, 0.5 m
SKU: 6XV1870-8GE50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (4-wire), desired length, prefabricated with two 4-pin M12 connectors (D-coded, 90° cable outlet).
IE Connecting Cable M12-90/M12-90, pre-assembled IE FC Trailing Cable GP with two M12 connections, 0.5 m in length.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting Industrial Ethernet stations (e.g. SIMATIC ET200 and SCALANCE XP-200) in IP 65/67 degree of protection.
Wire length: 0.5 m.
Number of electrical connections: 2.
Operating voltage (RMS value): 80 V.
Number of electrical cores: 4.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 49 mm.
With continuous bending: 100 mm.
Number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -25 ... +75 °C.
During storage: -25 ... +75 °C.
During transport: -25 ... +75 °C.
During installation: -10 ... +60 °C.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65, IP67.
Product feature: Silicon-free.
