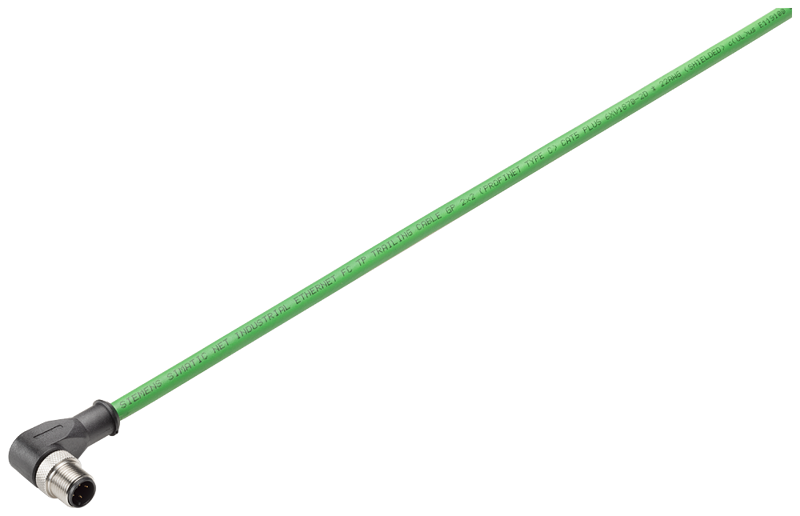

IE cable M12-90/M12-90 2x2, 2x M12 plug (D-coded), Cat 5e, 2 m

Specifications: Suitability for use: For connecting Industrial Ethernet stations (e.g. SIMATIC ET200 and SCALANCE XP-200) in IP 65/67 degree of protection. Wire length: 2 m. Number of electrical connections: 2. Operating voltage, RMS value: 80 V. Number of electrical cores: 4. Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires. Core diameter of AWG22 insulated conductor: 0.75 mm. Outer diameter: Of inner conductor: 0.75 mm. Of the wire insulation: 1.5 mm. Of the inner sheath of the cable: 3.9 mm. Of cable sheath: 6.5 mm. Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm. Material: Of the wire insulation: polyethylene (PE). Of the inner sheath of the cable: PVC. Of cable sheath: PVC. Colour: Of the insulation of data wires: white/yellow/blue/orange. Of cable sheath: green. Bending radius: With single bend / minimum permissible: 32.5 mm. With multiple bends / minimum permissible: 49 mm. With continuous bending: 100 mm. Number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s². Tensile load / maximum: 150 N. Plug: Type of plug interlock: screwed. Design of plug-in connection: M12-90. Connector coding of the M12 circular connector: D-coded. Ambient temperature: During operation: -25 ... +75 °C. During storage: -25 ... +75 °C. During transport: -25 ... +75 °C. During installation: -10 ... +60 °C. Chemical resistance: To mineral oil: conditional resistance. To grease: conditional resistance. Radiological resistance / to UV radiation: resistant. Protection class IP: IP65, IP67. Product feature: Silicon-free.
