IE FC TP FRNC cable GP (type B) 2x2, AWG22/7, Cat5e, UL, sold by meter, min. 20m
SKU: 6XV1871-2F
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE FC TP FRNC Cable GP 2x2 (Type B).
Product Description: Flexible halogen-free bus cable (IEC 60754-1/2, 4-core), supplied by the meter, unassembled.
Industrial Ethernet FC TP FRNC GP cable TP installation cable for connection to FC outlet RJ45, 4-core, shielded, Cat5e, supplied per meter, maximum delivery unit 4000 m, minimum order quantity 20 m.
Suitability for use: For occasionally moved machine parts.
cable designation: L-9YH (ST) CH 2x2x0,34/1,5-100 GN VZN FRNC SF/UTP.
electrical data:
attenuation factor per length:
at 10 MHz / maximum: 0.06 dB/m.
at 100 MHz / maximum: 0.22 dB/m.
impedance:
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance:
of the characteristic impedance at 1 MHz … 100 MHz: 15 %.
near-end crosstalk per length:
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 10 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage:
RMS value: 80 V.
NVP value in percent: 69 %.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
number of electrical cores: 4.

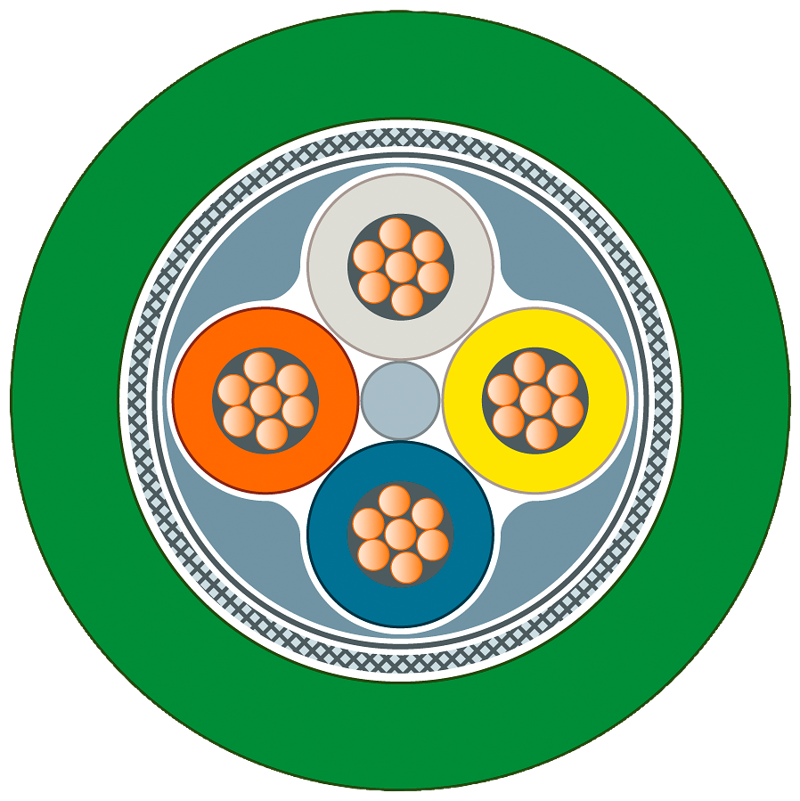

design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin plated copper wires.
type of electrical connection / FastConnect: Yes.
core diameter:
of AWG22 insulated conductor: 0.75 mm.
outer diameter.
of inner conductor: 0.75 mm.
of the wire insulation: 1.5 mm.
of the inner sheath of the cable: 3.9 mm.
of cable sheath: 6.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material:
of the wire insulation: PP.
of the inner sheath of the cable: FRNC.
of cable sheath: FRNC.
colour:
of the insulation of data wires: white/yellow/blue/orange.
of cable sheath: green.
bending radius:
with single bend / minimum permissible: 39 mm.
with multiple bends / minimum permissible: 97.5 mm.
tensile load / maximum: 150 N.
weight per length: 68 kg/km.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +75 °C.
during transport: -40 ... +75 °C.
during installation: 0 ... 50 °C.
note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
fire behaviour: flame resistant according to IEC 60332-3-22 (Category A/F), IEC 61034-2.
class of burning behaviour / according to EN 13501-6: Cca S1a d0 a1.
chemical resistance:
to mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
to grease: Conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature:
halogen-free: Yes; halogen-free according to IEC 60754-1/2.
silicon-free: Yes.
low-emission according to IEC 61034-2: Yes.
wire length / for Industrial Ethernet:
with 100BaseTX: 100 m.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(ETL)us, CMG / PLTC / Sun Res / OIL RES.
UL/ETL style / 600 V Rating: Yes; cRUus AWM 22375 AWM I A/B 60°C 600V FT2.
certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
standard for structured cabling: Cat5e.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code:
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
