IE TP ground cable (type C) 2x2, AWG 22, Cat 5e, sold by the meter, min. 20 m
SKU: 6XV1871-2G
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Standard bus cable (4-core) for subterranean installation, sold by the meter and unassembled.
IE ground cable (2x2).
Underground cable 4-core shielded Cat5e, supplied by the meter, maximum delivery unit 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Standard cable with rigid cores for fast installation.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 10 mΩ/m.
Loop resistance per length / maximum: 124 mΩ/m.
Operating voltage, RMS value: 100 V.
Mechanical data:
Number of electrical cores: 4.

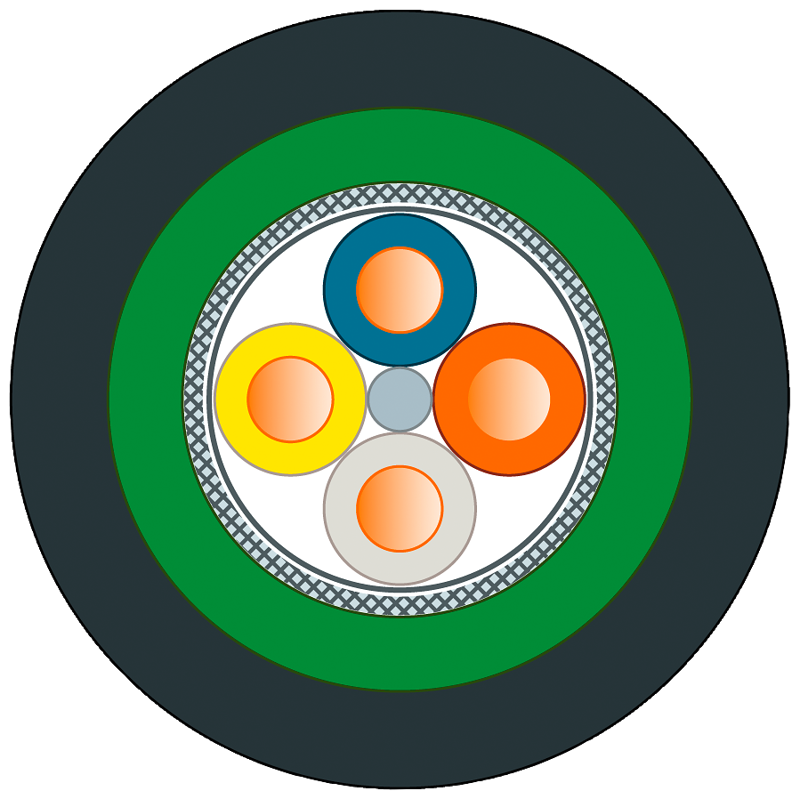

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.64 mm.
Outer diameter:
Of inner conductor: 0.64 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 4 mm.
Of cable sheath: 9 mm, Cable diameter >6.5 mm because of additional PE outer cover. Cable can only be connected to RJ45/M12 connector after outer cover is removed.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PE/PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 80 mm.
With multiple bends / minimum permissible: 80 mm.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
During installation: -5 ... +50 °C.
Electrical properties measured at 20 °C, tests according to EN50288-2-1.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Resistant.
Radiological resistance / to UV radiation: Resistant.
Product feature: Silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 100 m.
