IE FC TP food cable (type C) 2x2, AWG 22, Cat 5e, sold by the meter, min. 20 m
SKU: 6XV1871-2L
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible bus cable (4-core), sold by the meter, unassembled.
Industrial Ethernet FC TP FOOD cable GP 2x2 (PROFINET type C), TP installation cable for use in the food and luxury food industries, 4-core, shielded, CAT5E, offered by the meter; maximum delivery unit: 1000 m; minimum order quantity: 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Food and beverages industry.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 10 mΩ/m.
Loop resistance per length / maximum: 120 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

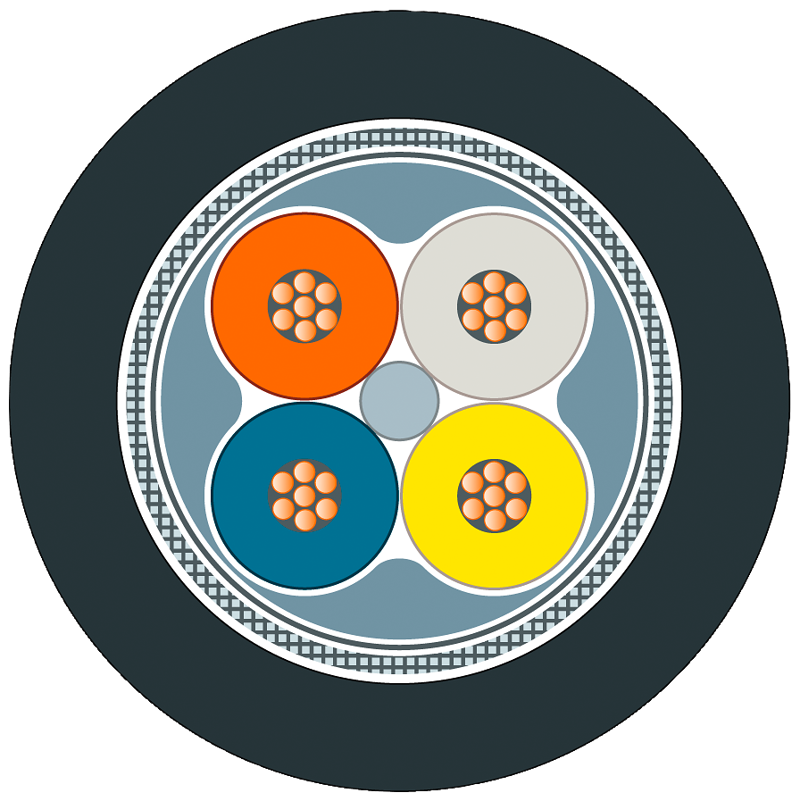

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: PE.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 20 mm.
With multiple bends / minimum permissible: 49 mm.
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -40 ... +75 °C.
During storage: -50 ... +75 °C.
During transport: -50 ... +75 °C.
During installation: -20 ... +60 °C.
Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 100 m.
