IE TP robust ground cable 2x2 (type C), ug., 4-wire, anti-rodent, sold by meter
SKU: 6XV1871-2N
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Standard bus cable (4-core) for subterranean installation with metal rodent protection, offered by the meter and unassembled.
IE tough ground cable 2x2; Cat5e; PROFINET Type C; underground cable; 4-core shielded, Cat5e, with rodent protection; offered by the meter; maximum delivery unit length 1000 m; minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Standard cable with rigid cores for fast installation.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 10 mΩ/m.
Loop resistance per length / maximum: 115 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

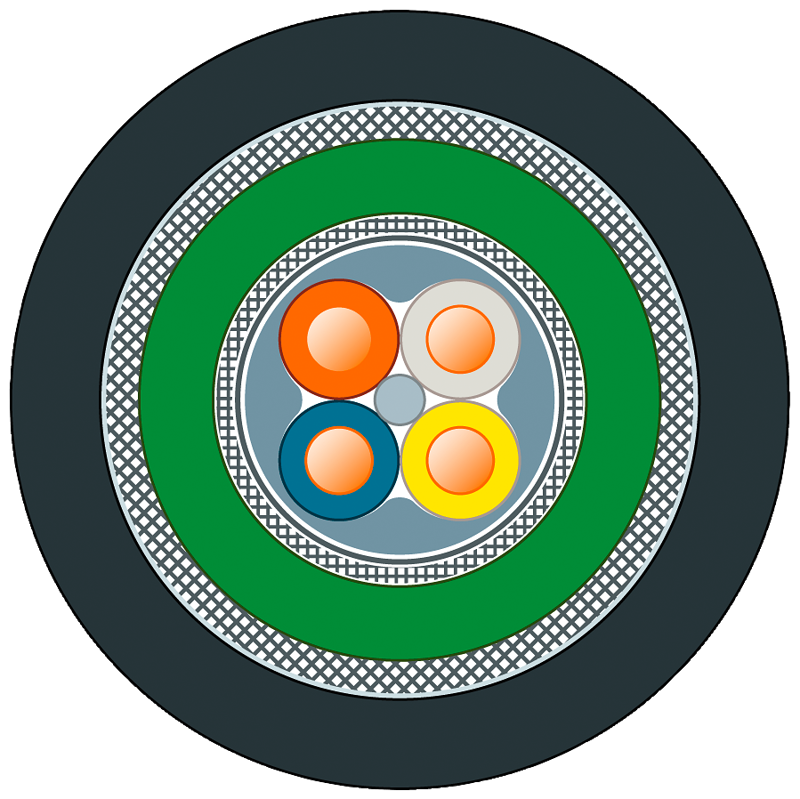

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.64 mm.
Outer diameter:
Of inner conductor: 0.64 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 9.4 mm, Cable diameter > 6.5 mm due to additional PE protective sheath and metal rodent protection. Cable can only be connected in the IE FC RJ45 Plug / IE FC M12 Plug PRO connector after stripping the protective sheath and the rodent protection.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PE/PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 94 mm.
With multiple bends / minimum permissible: 141 mm.
Tensile load / maximum: 3000 N.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -30 ... +70 °C.
Electrical properties measured at 20 °C, tests according to EN50288-2-1.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Resistant.
Radiological resistance / to UV radiation: Resistant.
Product feature: Silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 100 m.
