IE FC TP festoon cable GP (type B) 2x2, AWG22/7, Cat 5e, sold by meter, min. 20m
SKU: 6XV1871-2S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible bus cable (4-core), sold by the metre, unassembled.
Industrial Ethernet FC TP Festoon cable 2x2 (PROFINET Type B), TP installation cable for Festoon suspension, 4-core shielded Cat5e, offered by the meter, minimum 5 million bending cycles, maximum delivery unit 1000 m, and minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For continuous motion in a trailing cable, festoon mounting.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 100 mΩ/m.
Loop resistance per length / maximum: 120 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 4.

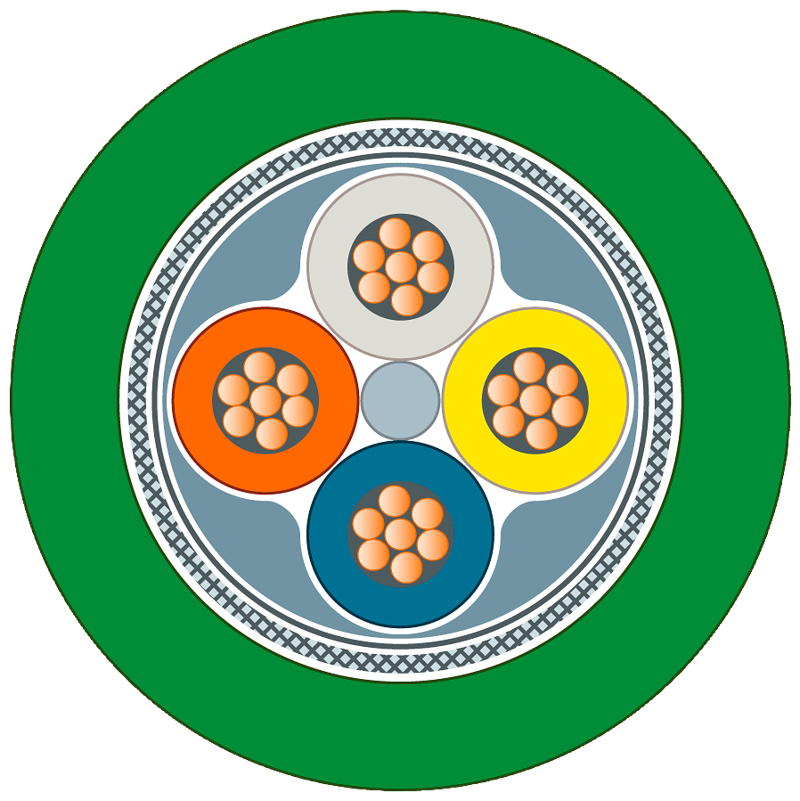

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: Green.
Bending radius:
With single bend / minimum permissible: 30 mm.
With multiple bends / minimum permissible: 70 mm.
With continuous bending: 70 mm.
number of bending cycles: 5000000; 5 million bending cycles at a bending radius of 70 mm and an acceleration of 4 m/s².
Tensile load / maximum: 150 N.
Ambient temperature:
During operation: -40 ... +75 °C.
During storage: -50 ... +75 °C.
During transport: -50 ... +75 °C.
During installation: -20 ... +60 °C.
Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
Chemical resistance:
To mineral oil: Conditional resistance.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product feature: Silicon-free.
Wire length / for Industrial Ethernet with 100BaseTX: 85 m.
