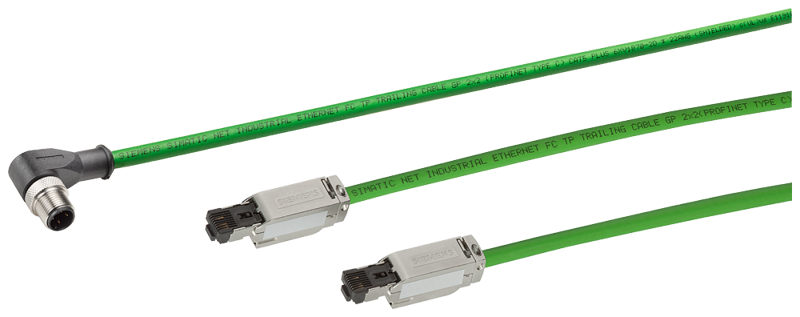

IE cable 2x2, 2x IE FC RJ45 plug 180, Cat 5e, IP20, 30 m
SKU: 6XV1871-5BN30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation IE Connecting Cable IE FC RJ45-180/ IE FC RJ45-180.
Product Description: Flexible plug-in cable (4-core), desired length, preassembled with two IE FC RJ45 connectors (2x2).
IE Connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180; IE FC Trailing Cable GP Pre-assembled with two IE FC RJ45 plug 180s; length 30.0 m.
Suitability for use: For connecting Industrial Ethernet stations with an RJ45 interface (10/100 Mbps).
wire length: 30 m.
electrical data:
number of electrical connections: 2.
attenuation factor per length:
at 10 MHz / maximum: 0.06 dB/m.
at 100 MHz / maximum: 0.2 dB/m.
impedance:
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance:
of the characteristic impedance at 1 MHz … 100 MHz: 5 %.
near-end crosstalk per length:
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 20 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage:
RMS value: 80 V.
NVP value in percent: 66 %.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
number of electrical cores: 4.
design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin plated copper wires.
core diameter:
of AWG22 insulated conductor: 0.75 mm.
outer diameter.
of inner conductor: 0.75 mm.
of the wire insulation: 1.5 mm.
of the inner sheath of the cable: 3.9 mm.
of cable sheath: 6.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
material:
of the wire insulation: polyethylene (PE).
of the inner sheath of the cable: PVC.
of cable sheath: PVC.
colour:
of the insulation of data wires: white/yellow/blue/orange.
of cable sheath: green.
bending radius:
with single bend / minimum permissible: 32.5 mm.
with multiple bends / minimum permissible: 58.5 mm.
with continuous bending: 100 mm.
number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
tensile load / maximum: 150 N.
weight per length: 68 kg/km.
plug:
design of plug-in connection: RJ45-180.
ambient conditions:
ambient temperature:
during operation: -25 ... +75 °C.
during storage: -25 ... +75 °C.
during transport: -25 ... +75 °C.
during installation: -10 ... +60 °C.
note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
fire behaviour: flame resistant according to UL 1685 (CSA FT 4).
chemical resistance:
to mineral oil: conditional resistance.
to grease: Conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature:
halogen-free: No.
silicon-free: Yes.
standards, specifications, approvals:
UL/ETL listing / 300 V Rating: Yes; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES.
UL/ETL style / 600 V Rating: Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2.
certificate of suitability:
EAC approval: Yes.
CE marking: Yes.
RoHS conformity: Yes.
standard for structured cabling: Cat5e, Class D.
Marine classification association:
American Bureau of Shipping Europe Ltd. (ABS): No.
French marine classification society (BV): No.
Det Norske Veritas (DNV): No.
Germanische Lloyd (GL): No.
Lloyds Register of Shipping (LRS): No.
Nippon Kaiji Kyokai (NK): No.
Polski Rejestr Statkow (PRS): No.
reference code:
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
