IE cable M12-180/M12-180 2x2, M12 plug (D-coded, push-pull), Cat 5e, 0.5 m
SKU: 6XV1871-8AE50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE Connecting Cable M12-180/M12-180.

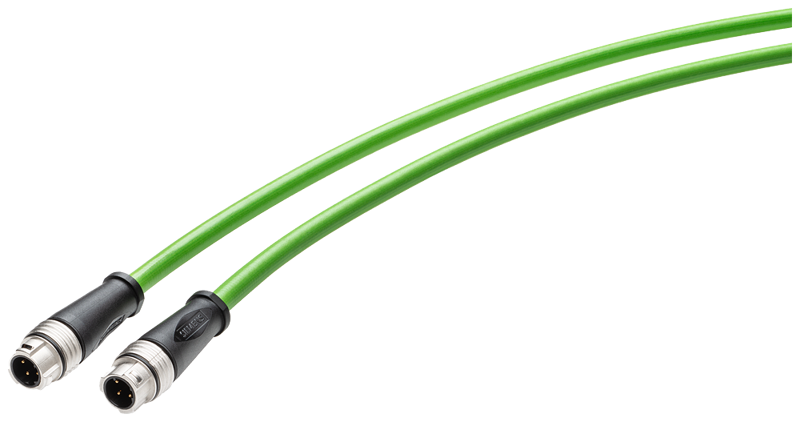

Product Description: Preassembled with two 4-pin M12 plugs (D-coded, 180° cable outlet, push-pull connection mechanism in line with IEC 61076-2-012 for ET200SP BusAdapter), this flexible 4-wire cable comes in a desired length.
The ET200SP BusAdapter requires a pre-assembled IE FC trailing cable GP with M12 push-pull plugs (D-coded) and a length of 0.5 m.
Suitability for use: for connecting Industrial Ethernet stations (SIMATIC ET200 or XF-200 with M12 bus adapter) with degree of protection IP20.
cable designation: 2YY (ST) CY 2x2x0,75/1,5-100 LI GN.
wire length: 0.5 m.
electrical data:
number of electrical connections: 2.
attenuation factor per length:
at 10 MHz / maximum: 0.063 dB/m.
at 100 MHz / maximum: 0.213 dB/m.
impedance:
at 1 MHz ... 100 MHz: 100 Ω.
relative symmetrical tolerance:
of the characteristic impedance at 1 MHz … 100 MHz: 5 %.
near-end crosstalk per length:
at 1 MHz ... 100 MHz: 0.5 dB/m.
transfer impedance per length / at 10 MHz: 20 mΩ/m.
loop resistance per length / maximum: 120 mΩ/m.
operating voltage:
RMS value: 80 V.
NVP value in percent: 66 %.
