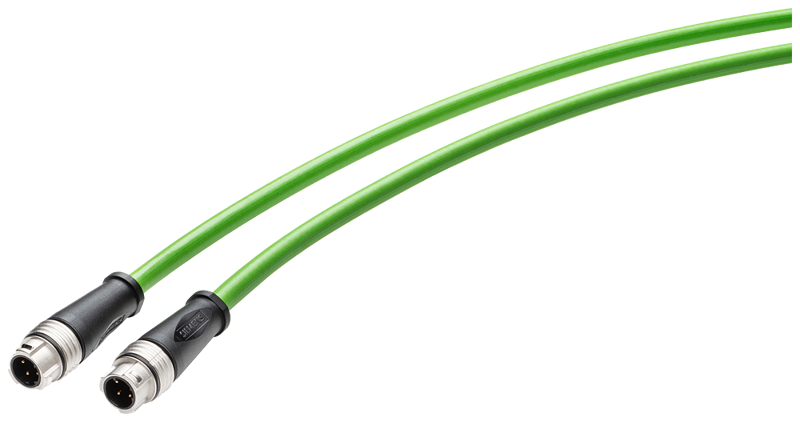

IE cable M12-180/M12-180 2x2, M12 plug (D-coded, push-pull), Cat 5e, 2 m
SKU: 6XV1871-8AH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (4-wire) with appropriate length and two 4-pin M12 connectors (D-coded, 180° cable outlet, push-pull connection system in line with IEC 61076-2-012 for ET200SP Bus Adapter).
IE connecting cable M12 push pull 180 / M12 push pull 180, solely for ET200SP Bus Adapter, with IE FC trailing cable GP, M12 connectors, length 2.0 meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: for connecting Industrial Ethernet stations (SIMATIC ET200 or XF-200 with M12 bus adapter) with degree of protection IP20.
Wire length: 2 m.
Number of electrical connections: 2.
Operating voltage, RMS value: 80 V.
Number of electrical cores: 4.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm.
Of the wire insulation: 1.5 mm.
Of the inner sheath of the cable: 3.9 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 49 mm.
With continuous bending: 100 mm.
Number of bending cycles: 3000000; Drag chain suitable for 3 million bending cycles at a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s².
Tensile load / maximum: 150 N.
Plug:
Type of plug interlock: screwed.
Design of plug-in connection: M12-180.
Connector coding of the M12 circular connector: D-coded.
Ambient temperature:
During operation: -25 ... +75 °C.
During storage: -25 ... +75 °C.
During transport: -25 ... +75 °C.
During installation: -10 ... +60 °C.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP20.
Product feature: Silicon-free.
