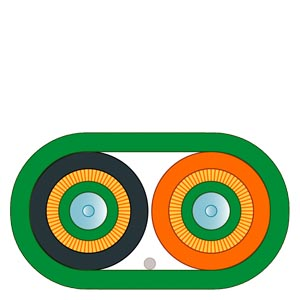

SIEMENS SIMATIC S7-300 FO Standard Cable GP (50/125)
SKU: 6XV1873-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Glass fibre-optic cable offered by the metre, unassembled.
FO Standard Cable GP (50/125), splitable, UL approved, with a maximum length of 1000 m and a minimum order quantity of 20 m, sold by the meter.
Suitability for use: Cable for installation indoors and outdoors, UL approval.
Version of the assembled FO cable: sold by the meter.
Cable designation: AT-W(ZN)YY 2x1 G 50/125 OM2++.
Buy currently uses Select Automation shop pricing and checkout.
Optical data:
attenuation factor per length.
at 850 nm / maximum: 2.7 dB/km.
at 1300 nm / maximum: 0.7 dB/km.
bandwidth length product.
at 850 nm: 600 GHz·m.
at 1300 nm: 1200 GHz·m.
mechanical data:
number of fibres / per FOC core: 1.
number of FO cores / per FOC cable: 2.
version of the FO conductor fibre: Multi-mode gradient fibre 50/125 µm, OM 2.
design of the FOC core: Hollow core, filled, diameter 1400 µm.
design of the fibre-optic cable: segmentable.
outer diameter.
of the optical fibres: 50 µm.
of the optical fibre sheath: 125 µm.
of the FOC core sheath: 2.9 mm.
symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
width / of cable sheath: 7.4 mm.
thickness / of cable sheath: 4.5 mm.
material:
of the fibre-optic cable core: Quartz glass.
of the optical fibre sheath: Quartz glass.
of the FOC core sheath: PVC.
of the fibre-optic cable sheath: PVC.
of the strain relief: Aramid fibres.
Colour.
of the FOC core sheath: orange/black.
of cable sheath: green.
bending radius.
with single bend / minimum permissible: 45 mm.
with multiple bends / minimum permissible: 65 mm.
tensile load:
during installation / short-term: 1200 N.
during operation / maximum: 500 N.
short-term shear force per length: 600 N/cm.
continuous shear force per length: 400 N/cm.
weight per length: 40 kg/km.
ambient conditions:
ambient temperature.
during operation: -25 ... +80 °C.
during storage: -25 ... +80 °C.
during transport: -25 ... +80 °C.
during installation: -5 ... +50 °C.
fire behaviour: flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A).
class of burning behaviour / according to EN 13501-6: Eca.
chemical resistance.
to mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h.
to grease: conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature.
halogen-free: No.
silicon-free: Yes.
product component / rodent protection: No.
wire length.
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
for glass FOC / for 1000BaseLSX / for Industrial Ethernet / maximum: 2000 m.
for glass FOC / for 10GBaseLX4 / for Industrial Ethernet / maximum: 300 m.
for glass FOC / with PROFIBUS / maximum: 3000 m.
standards, specifications, approvals:
certificate of suitability.
UL approval: Yes.
RoHS conformity: Yes.
reference code:
according to IEC 81346-2: WH.
according to IEC 81346-2:2019: WHA.
