FO FRNC Cable 50/125/1400 (OM 2), segmentable, MM, halogen-free, UL
SKU: 6XV1873-2B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Glass Fiber-optic cable offered by the meter, unassembled.
FO FRNC Cable (50/125/OM2), halogen-free, splitable, for permanent routing, maximum length 1000 m, minimum order quantity 20 m, offered by the meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Halogen-free cable (acc. to IEC 61034-1 / 61034-2 and IEC 60754-1 / IEC 60754-2) for use indoors and outdoors with permanent installation, UL approval.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Multi-mode gradient Fiber 50/125 µm, OM 2.
Design of the FOC core: Hollow core, filled, diameter 1400 µm.

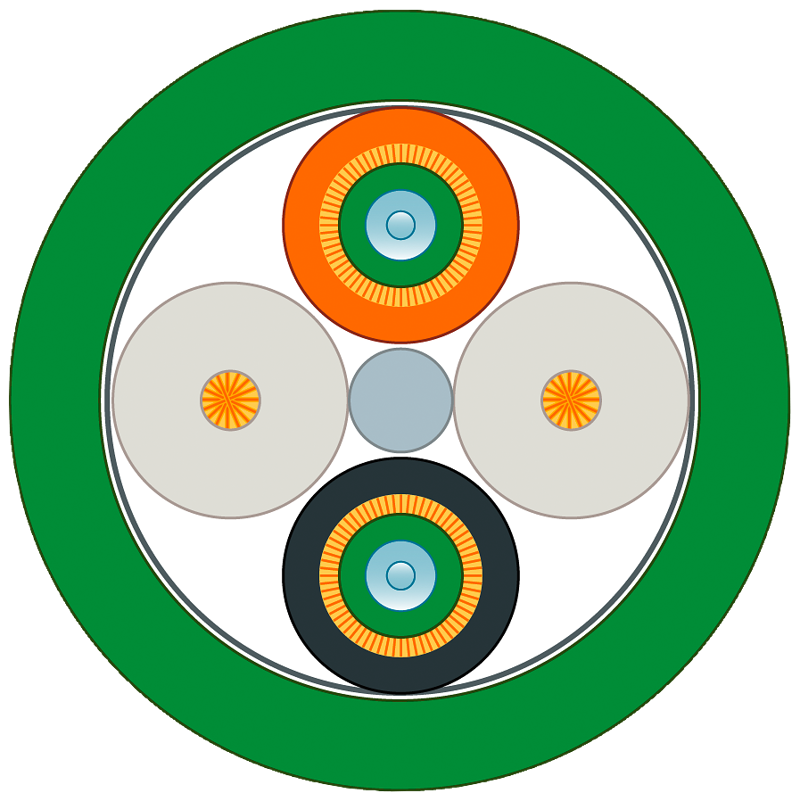

Design of the Fiber-optic cable: segmental.
Outer diameter:
Of the optical Fibers: 50 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 2.9 mm.
Outer diameter / of the cable: 9.2 mm.
Symmetrical deviation / of the outer diameter of the line: 0.3 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: FRNC.
Of the Fiber-optic cable sheath: FRNC.
Of the strain relief: Aramid Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 90 mm.
With multiple bends / minimum permissible: 135 mm.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h and +25 °C, 168 h.
To grease: conditional resistance.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
For glass FOC / for 1000BaseLSX / for Industrial Ethernet / maximum: 2000 m.
For glass FOC / for 10GBaseLX4 / for Industrial Ethernet / maximum: 300 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
