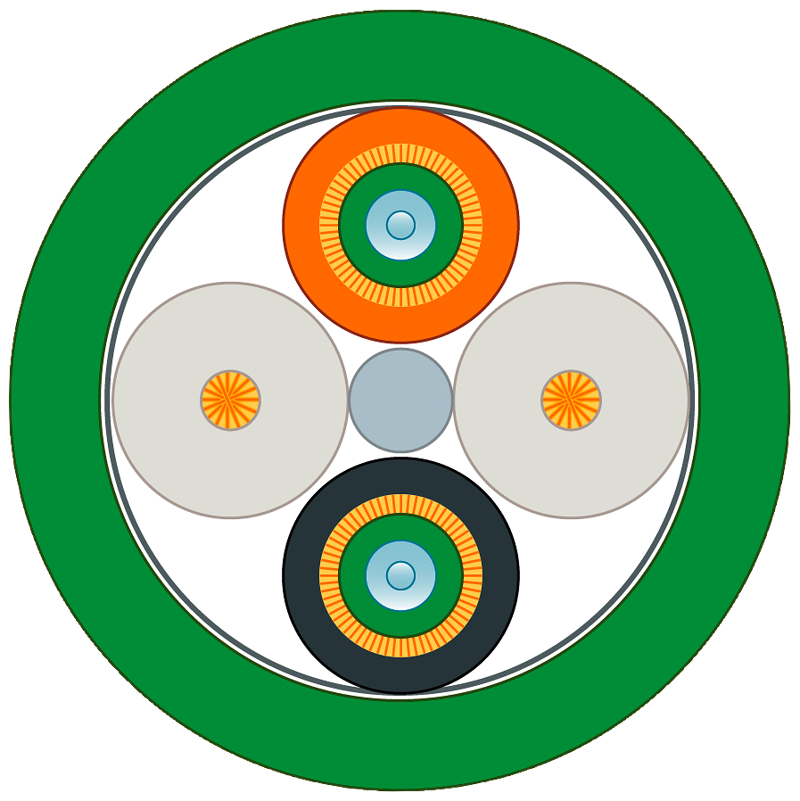

FO Trailing Cable 50/125/1400 (OM 2), segmentable, MM, PUR, sold by the meter
SKU: 6XV1873-2C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Glass Fiber-optic cable, unassembled.
FO Trailing Cable (50/125), trailing cable, splitable, without connection, offered by the meter, maximum length 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Flexible cable for use in cable carriers for high mechanical loading, no UL approval.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Multi-mode gradient Fiber 50/125 µm, OM 2.
Design of the FOC core: Hollow core, filled, diameter 1400 µm.
Design of the Fiber-optic cable: segmental.
Outer diameter:
Of the optical Fibers: 50 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 2.9 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 10.5 mm.
Symmetrical deviation / of the outer diameter of the line: 0.5 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: PVC.
Of the Fiber-optic cable sheath: PUR.
Of the strain relief: Aramid Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 150 mm.
With multiple bends / minimum permissible: 200 mm.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: - -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min.
To grease: resistant.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature: Silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
For glass FOC / for 1000BaseLSX / for Industrial Ethernet / maximum: 2000 m.
For glass FOC / for 10GBaseLX4 / for Industrial Ethernet / maximum: 300 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
