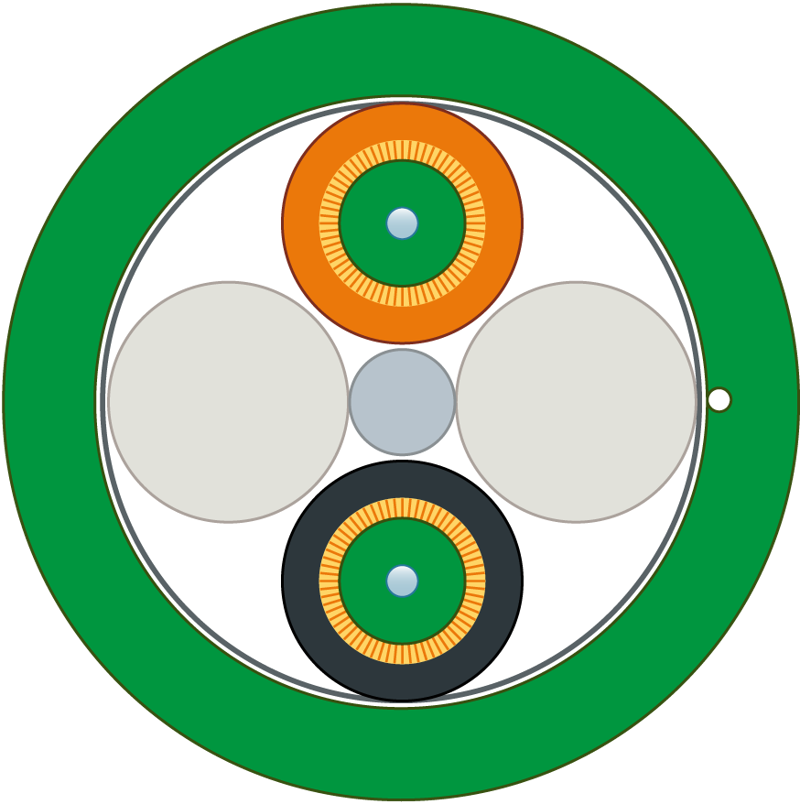

FO FRNC Cable GP (50/ 125/OM4), halogen-free cable, splittable
SKU: 6XV1873-2E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Description: Glass fiber-optic cable offered by the metre, unassembled.
Halogen-free FO FRNC Cable GP (50/125/OM4), splittable, maximum length of 1000 m, minimum order quantity of 20 m, offered by the meter.
suitability for use: Halogen-free cable (acc. to IEC 61034-1 / 61034-2 and IEC 60754-1 / IEC 60754-2) for use indoors and outdoors with permanent installation, UL approval.
version of the assembled FO cable: sold by the meter.
cable designation: AT-V(ZN)HH 2G 50/125 OM4BI TB900L 2,2.
optical data:
attenuation factor per length:
at 850 nm / maximum: 2.5 dB/km.
at 1300 nm / maximum: 0.7 dB/km.
bandwidth length product:
at 850 nm: 3500 GHz·m.
at 1300 nm: 500 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
number of fibres / per FOC core: 1.
number of FO cores / per FOC cable: 2.
version of the FO conductor fibre: Multi-mode gradient fibre 50/125 µm, OM 4.
design of the FOC core: fixed core (TB900L).
design of the fibre-optic cable: segment able.
outer diameter:
of the optical fibres: 50 µm.
of the optical fibre sheath: 125 µm.
of the FOC core sheath: 2.2 mm.
symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
outer diameter / of the cable: 7.2 mm.
symmetrical deviation / of the outer diameter of the line: 0.3 mm.
material:
of the fibre-optic cable core: Quartz glass.
of the optical fibre sheath: Quartz glass.
of the FOC core sheath: FRNC.
of the fibre-optic cable sheath: FRNC.
of the strain relief: Aramid fibres.
colour:
of the FOC core sheath: orange/black.
of cable sheath: green.
bending radius:
with single bend / minimum permissible: 70 mm.
with multiple bends / minimum permissible: 150 mm.
tensile load:
during installation / short-term: 800 N.
during operation / maximum: 250 N.
short-term shear force per length: 1000 N/cm.
continuous shear force per length: 500 N/cm.
weight per length: 57 kg/km.
ambient conditions:
ambient temperature:
during operation: -30 ... +85 °C.
during storage: -30 ... +85 °C.
during transport: -30 ... +85 °C.
during installation: -5 ... +50 °C.
fire behaviour: flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A).
class of burning behaviour / according to EN 13501-6: B2ca - s1a d1 a1.
chemical resistance:
to mineral oil: no resistance.
to grease: conditional resistance.
to water: conditional resistance.
radiological resistance / to UV radiation: conditional resistance.
product features, product functions, product components / general:
product feature:
halogen-free: Yes.
silicon-free: Yes.
product component / rodent protection: No.
wire length:
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 3000 m.
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 1040 m.
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 600 m.
for glass FOC / for 1000BaseLSX / for Industrial Ethernet / maximum: 1000 m.
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum: 550 m.
for glass FOC / for 10GBaseLX4 / for Industrial Ethernet / maximum: 300 m.
for glass FOC / with 25GBaseSR / for Industrial Ethernet / maximum: 100 m.
standards, specifications, approvals:
certificate of suitability:
UL approval: Yes.
RoHS conformity: Yes.
reference code:
according to IEC 81346-2: WH.
according to IEC 81346-2:2019: WHA.
