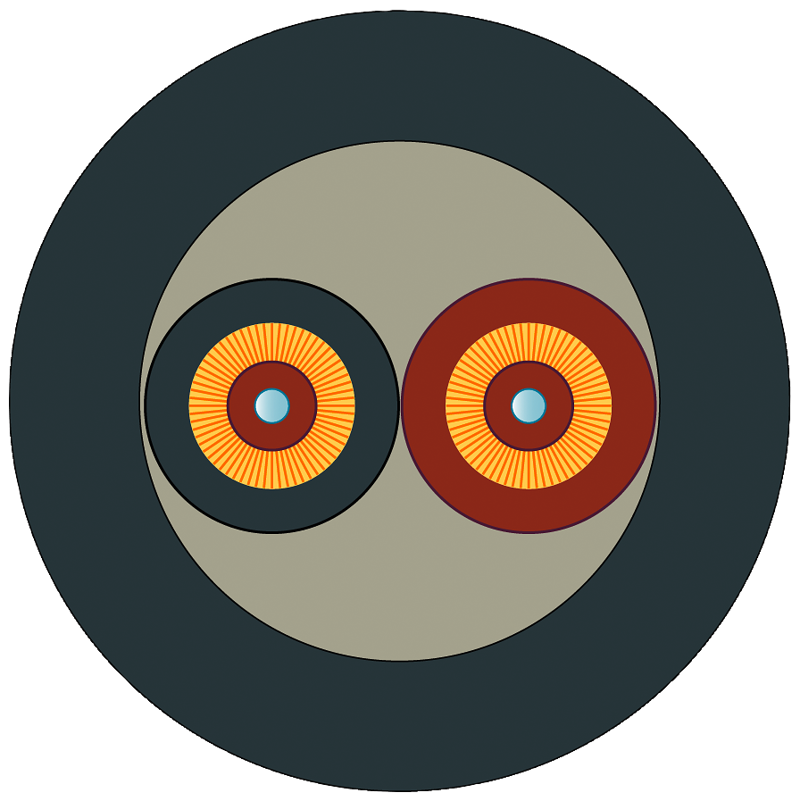

FO Robust Cable GP 50/125/190 (OM 2), segmentable, MM, rodent protection
SKU: 6XV1873-2R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: MM FO rugged cable GP (PROFINET type C).
Product Description: Glass fiber-optic cable offered by the metre, unassembled.
MM FO durable cable GP (2G50/125) for indoor and outdoor use, with rodent protection, splittable design, and no connectors. Sold by the meter. Minimum order quantity: 20 m; maximum length: 2000 m.
suitability for use: Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground.
version of the assembled FO cable: sold by the meter.
cable designation: AT-V(ZN)H(ZN)BH 2G50/125 OM2+.
optical data:
attenuation factor per length:
at 850 nm / maximum: 2.7 dB/km.
at 1300 nm / maximum: 1 dB/km.
bandwidth length product:
at 850 nm: 600 GHz·m.
at 1300 nm: 1200 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
number of fibres / per FOC core: 1.
number of FO cores / per FOC cable: 2.
version of the FO conductor fibre: Multi-mode gradient fibre 50/125 µm, OM 2.
design of the FOC core: Solid core, diameter 900 µm.
design of the fibre-optic cable: segment able.
outer diameter:
of the optical fibres: 50 µm.
of the optical fibre sheath: 125 µm.
of the FOC core sheath: 2.2 mm.
outer diameter / of the cable: 7.5 mm.
material:
of the fibre-optic cable core: Quartz glass.
of the optical fibre sheath: Quartz glass.
of the FOC core sheath: PE flame retardant.
of the fibre-optic cable sheath: PE flame retardant.
of the strain relief: Aramid fibers and glass roving.
colour:
of the FOC core sheath: orange/black, with direction arrow.
of cable sheath: Black.
bending radius:
with single bend / minimum permissible: 25 mm.
with multiple bends / minimum permissible: 40 mm.
tensile load:
during installation / short-term: 2000 N.
during operation / maximum: 1000 N.
short-term shear force per length: 600 N/cm.
continuous shear force per length: 200 N/cm.
weight per length: 67 kg/km.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
during installation: -20 ... +60 °C.
fire behaviour: Flame-resistant according to IEC 60332-3-24, IEC 61034-2, IEC 60754-1, IEC 60754-2.
class of burning behaviour / according to EN 13501-6: Dca - s1a,d0,a1.
chemical resistance:
to mineral oil: conditional resistance.
to grease: conditional resistance.
to water: Resistant acc. to IEC 60794-1-2 F5A (installation up to 10 m water depth).
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature:
halogen-free: Yes.
silicon-free: Yes.
product component / rodent protection: Yes.
wire length:
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum: 60 m
for glass FOC / with PROFIBUS / maximum: 3000 m.
standards, specifications, approvals:
certificate of suitability:
UL approval: Yes.
RoHS conformity: Yes.
reference code:
according to IEC 81346-2: WH.
according to IEC 81346-2:2019: WHA.
