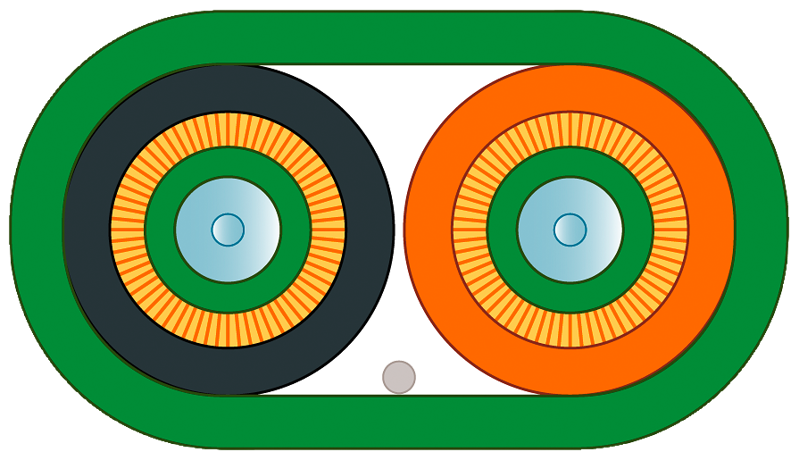

FO Standard Cable GP 50/125/1400 (OM2), glass, MM, 2 x 2 ST, 20 m
SKU: 6XV1873-3AN20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Glass Fiber-optic cable preassembled to your specified length.
FO Standard Cable 50/125, 20-meter length, pre-assembled with 2x2 BFOC connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for installation indoors and outdoors, UL approval.
Wire length: 20 m.
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: Multi-mode gradient Fiber 50/125 µm, OM 2.
Design of the FOC core: Hollow core, filled, diameter 1400 µm.
Design of the Fiber-optic cable: segment able.
Outer diameter:
Of the optical Fibers: 50 µm.
Of the optical Fiber sheath: 125 µm.
Of the FOC core sheath: 2.9 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Width / of cable sheath: 7.4 mm.
Thickness / of cable sheath: 4.5 mm.
Material:
Of the Fiber-optic cable core: Quartz glass.
Of the optical Fiber sheath: Quartz glass.
Of the FOC core sheath: PVC.
Of the Fiber-optic cable sheath: PVC.
Of the strain relief: Aramid Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 45 mm.
With multiple bends / minimum permissible: 65 mm.
Tensile load:
During installation / short-term: 1200 N.
During operation / maximum: 500 N.
Ambient temperature:
During operation: -25 ... +80 °C.
During storage: -25 ... +80 °C.
During transport: -25 ... +80 °C.
During installation: -5 ... +50 °C.
Chemical resistance:
To mineral oil: conditional resistance.
To grease: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP20.
Product feature: Silicon-free.
Wire length:
For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
For glass FOC / with PROFIBUS / maximum: 3000 m.
