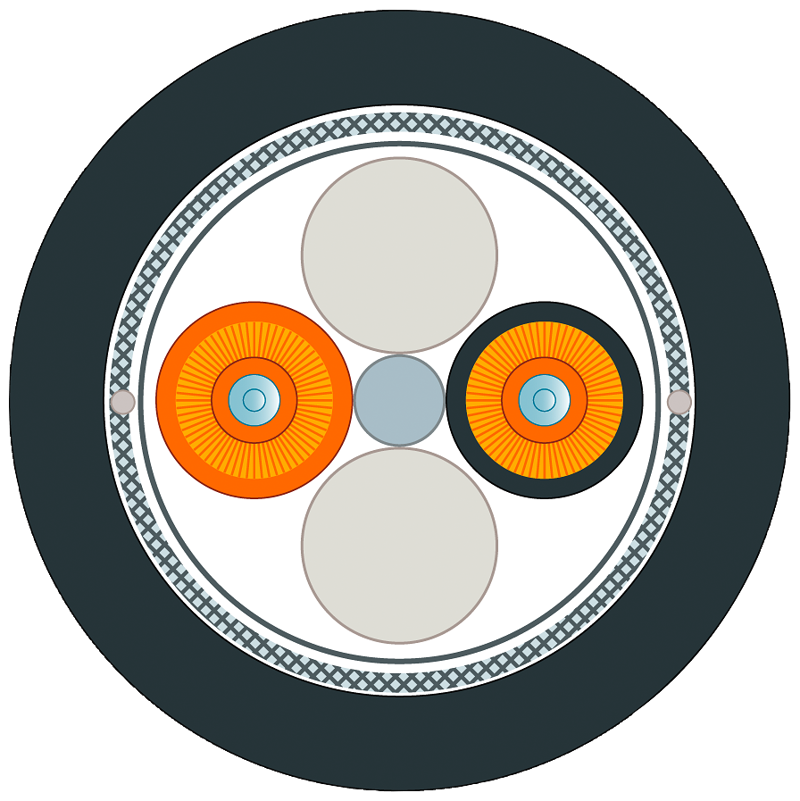

FO ground cable 50/125/1400 (OM 2), multimode, 2x 2 ST, anti-rodent, 200 m

Specifications: Suitability for use: Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use outdoors as well as for direct routing underground. Wire length: 200 m. Number of Fibers / per FOC core: 1. Number of FO cores / per FOC cable: 2. Version of the FO conductor Fiber: Multi-mode gradient Fiber 50/125 µm, OM 2. Design of the FOC core: Hollow core, filled, diameter 1400 µm. Design of the Fiber-optic cable: segment able. Outer diameter: Of the optical Fibers: 50 µm. Of the optical Fiber sheath: 125 µm. Of the FOC core sheath: 2.9 mm. Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm. Width / of cable sheath: 10.5 mm. Thickness / of cable sheath: 0.5 mm. Material: Of the Fiber-optic cable core: Quartz glass. Of the optical Fiber sheath: Quartz glass. Of the FOC core sheath: PVC. Of the Fiber-optic cable sheath: PE. Of the strain relief: Aramid Fibers. Colour: Of the FOC core sheath: orange/black. Of cable sheath: black. Bending radius: With single bend / minimum permissible: 105 mm. With multiple bends / minimum permissible: 155 mm. Tensile load: During installation / short-term: 2000 N. During operation / maximum: 800 N. Ambient temperature: During operation: -40 ... +75 °C. During storage: -40 ... +75 °C. During transport:  -40 ... +75 °C. During installation: -5 ... +50 °C. Chemical resistance: To mineral oil: resistant. To grease: resistant. To water: resistant. Radiological resistance / to UV radiation: resistant. Protection class IP: IP20. Product feature: Silicon-free. Wire length: For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m. For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m. For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m. For glass FOC / with PROFIBUS / maximum: 3000 m.
