FO robust cable GP 50/125/190 (OM 2), multimode, 2x LC duplex plugs, UL, 100 m
SKU: 6XV1873-5RT10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product identification MM FO Robust Cable GP.
Product Description: Glass fiber-optic cable, built to your desired length.
FO Robust Cable GP 50/125, pre-assembled with two LC Duplex connections, 100 m in length.
Suitability for use: Waterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground.
Version of the assembled: Pre-assembled with 2x LC DUPLEX connectors.
designation of the cable: AT-V(ZN)H(ZN)BH 2G50/125 OM2+.
Wire length: 100 meters.
optical data:
attenuation factor per length:
at 850 nm / maximum: 2.7 dB/km.
at 1300 nm / maximum: 1 dB/km.
bandwidth length product:
at 850 nm: 600 GHz·m.
at 1300 nm: 1200 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.

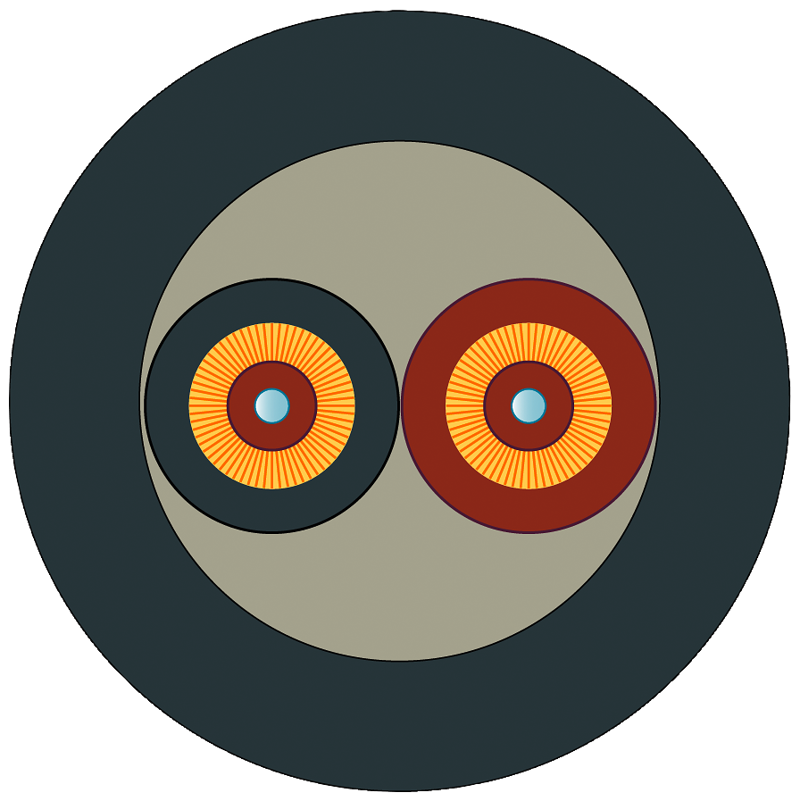

mechanical data:
number of fibres / per FOC core: 1.
number of FO cores / per FOC cable: 2.
version of the FO conductor fibre: Multi-mode gradient fibre 50/125/245 µm, OM2.
design of the FOC core: Solid core, diameter 900 µm.
design of the fibre-optic cable: segment able.
outer diameter:
of the optical fibres: 50 µm.
of the optical fibre sheath: 125 µm.
of the FOC core sheath: 2.2 mm.
outer diameter / of the cable: 7.5 mm.
material:
of the fibre-optic cable core: Quartz glass.
of the optical fibre sheath: Quartz glass.
of the FOC core sheath: PE flame retardant.
of the fibre-optic cable sheath: PE flame retardant.
of the strain relief: Aramid fibres and glass roving.
colour:
of the FOC core sheath: orange/black, with direction arrow.
of cable sheath: Black.
bending radius:
with single bend / minimum permissible: 25 mm.
with multiple bends / minimum permissible: 40 mm.
tensile load:
during installation / short-term: 2000 N.
during operation / maximum: 1000 N.
short-term shear force per length: 600 N/cm.
continuous shear force per length: 200 N/cm.
weight per length: 67 kg/km.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
during installation: -20 ... +60 °C.
fire behaviour: flame-resistant acc. to IEC 60332-3-24.
chemical resistance:
to mineral oil: conditional resistance.
to grease: conditional resistance.
to water: resistant.
radiological resistance / to UV radiation: resistant.
product features, product functions, product components / general:
product feature:
halogen-free: Yes.
silicon-free: Yes.
product component / rodent protection: Yes.
wire length:
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum: 60 m.
for glass FOC / with PROFIBUS / maximum: 3000 m.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
reference code:
according to IEC 81346-2: WH.
according to IEC 81346-2:2019: WHA.
