FO trailing cable 50/125/1400 (OM 2), multimode, 2x 2 SC plugs, PUR, 3 m

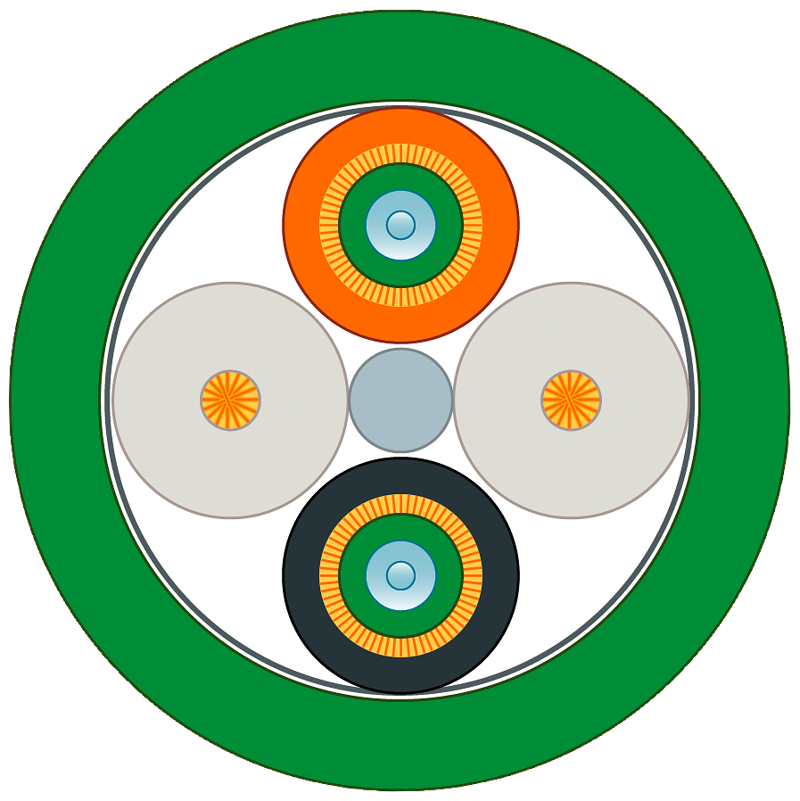

Specifications: Suitability for use: Flexible cable for use in cable carriers for high mechanical loading, no UL approval. Wire length: 3 m. Number of Fibers / per FOC core: 1. Number of FO cores / per FOC cable: 2. Version of the FO conductor Fiber: Multi-mode gradient Fiber 50/125 µm, OM 2. Design of the FOC core: Hollow core, filled, diameter 1400 µm. Design of the Fiber-optic cable: segment able. Outer diameter: Of the optical Fibers: 50 µm. Of the optical Fiber sheath: 125 µm. Of the FOC core sheath: 2.9 mm. Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm. Outer diameter / of the cable: 10.5 mm. Symmetrical deviation / of the outer diameter of the line: 0.5 mm. Material: Of the Fiber-optic cable core: Quartz glass. Of the optical Fiber sheath: Quartz glass. Of the FOC core sheath: PVC. Of the Fiber-optic cable sheath: PUR. Of the strain relief: Aramid Fibers. Colour: Of the FOC core sheath: orange/black. Of cable sheath: green. Bending radius: With single bend / minimum permissible: 150 mm. With multiple bends / minimum permissible: 200 mm. Number of bending cycles: 5000000. Tensile load: During installation / short-term: 2000 N. During operation / maximum: 800 N. Ambient temperature: During operation: -40 ... +80 °C. During storage: -40 ... +80 °C. During transport:  -40 ... +80 °C. During installation: -5 ... +50 °C. Chemical resistance: To mineral oil: acc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min. To grease: resistant. Radiological resistance / to UV radiation: resistant. Protection class IP: IP20. Product feature: Silicon-free. Wire length: For glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m. For glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m. For glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m. For glass FOC / with PROFIBUS / maximum: 3000 m.
