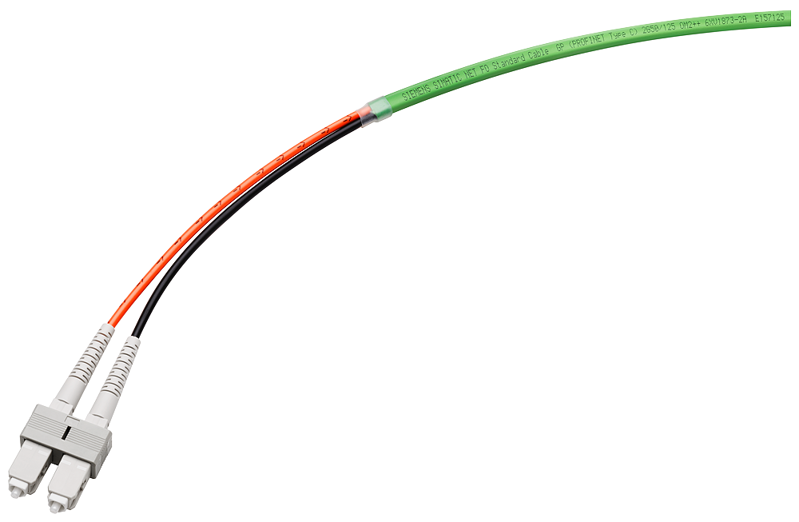

FO trailing cable GP 50/125, multimode, 2x 2 SC plugs, PVC, UL, 50 m
SKU: 6XV1873-6DN50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: FO Trailing Cable GP.
Product Description: Glass fiber-optic cable, desired length, preassembled.
FO Trailing Cable GP 50/125, pre-assembled with 2x2 SC connectors and an insertion assist, length 50 m.
Suitability for use: Flexible cable for use in cable carriers for high mechanical loading, UL approval.
Version of the assembled: Preassembled with four SC connectors.
designation of the cable: AT-W(ZN)Y(ZN)Y 2G 50/125 OM2++.
Wire length: 50 meters.
optical data:
attenuation factor per length:
at 850 nm / maximum: 2.7 dB/km.
at 1300 nm / maximum: 0.7 dB/km.
bandwidth length product:
at 850 nm: 600 GHz·m.
at 1300 nm: 1200 GHz·m.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
number of fibres / per FOC core: 1.
number of FO cores / per FOC cable: 2.
version of the FO conductor fibre: Multi-mode gradient fibre 50/125 µm, OM 2.
design of the FOC core: Hollow core, filled, diameter 1400 µm.
design of the fibre-optic cable: segment able.
outer diameter:
of the optical fibres: 50 µm.
of the optical fibre sheath: 125 µm.
of the FOC core sheath: 2.9 mm.
symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
outer diameter / of the cable: 10.5 mm.
symmetrical deviation / of the outer diameter of the line: 0.5 mm.
material:
of the fibre-optic cable core: Quartz glass.
of the optical fibre sheath: Quartz glass.
of the FOC core sheath: PVC.
of the fibre-optic cable sheath: PVC.
of the strain relief: Aramid fibres.
colour:
of the FOC core sheath: orange/black.
of cable sheath: Green.
bending radius:
with single bend / minimum permissible: 150 mm.
with multiple bends / minimum permissible: 200 mm.
number of bending cycles: 3500000.
tensile load:
during installation / short-term: 2000 N.
during operation / maximum: 800 N.
short-term shear force per length: 700 N/cm.
continuous shear force per length: 400 N/cm.
weight per length: 90 kg/km.
ambient conditions:
ambient temperature:
during operation: -25 ... +80 °C.
during storage: -25 ... +80 °C.
during transport: -25 ... +80 °C.
during installation: -5 ... +50 °C.
fire behaviour: flame-resistant acc. to IEC 60332-1-2 and IEC 60332-3-22 (Cat. A).
chemical resistance:
to mineral oil: conditional resistance.
to grease: conditional resistance.
radiological resistance / to UV radiation: resistant.
protection class IP: IP20.
product features, product functions, product components / general:
product feature:
halogen-free: No.
silicon-free: Yes.
product component / rodent protection: No.
wire length:
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum: 5000 m.
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum: 750 m.
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum: 2000 m.
for glass FOC / with PROFIBUS / maximum: 3000 m.
standards, specifications, approvals:
certificate of suitability:
UL approval: Yes.
RoHS conformity: Yes.
reference code:
according to IEC 81346-2: WH.
according to IEC 81346-2:2019: WHA.
