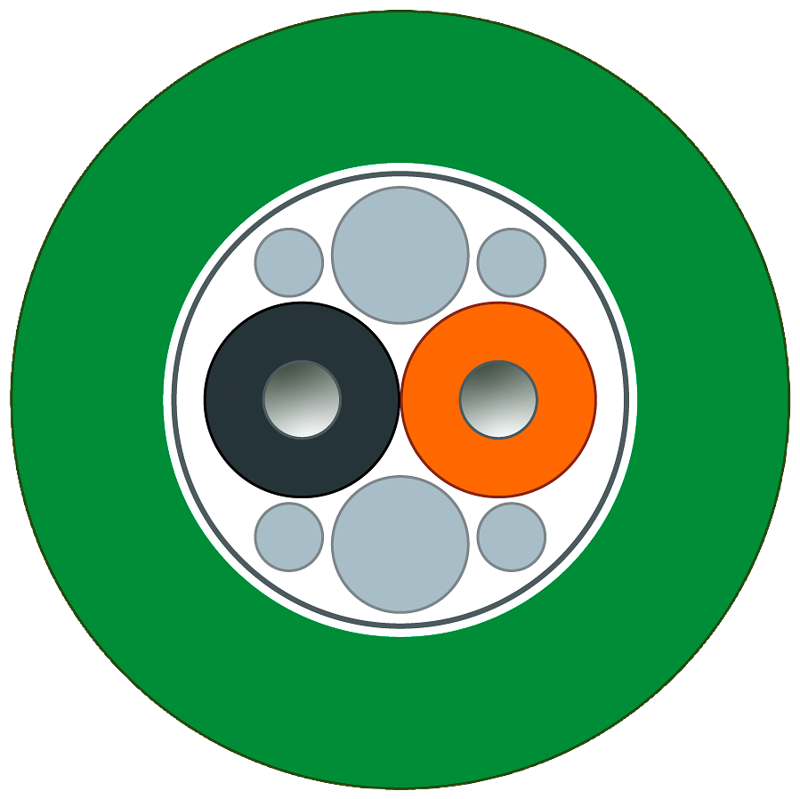

POF Trailing Cable 980/1000, with poly-optic fibers, UL, sold by the meter
SKU: 6XV1874-2B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Fiber-optic cable with poly optical Fiber, sold by the meter and unassembled.
POF Trailing Cable 980/1000, PROFINET, sold by the meter, minimum order quantity 20 m, maximum length 500 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Cable for moving applications (e.g. use in cable carriers).
Number of Fibers / per FOC core: 1.
Number of FO cores / per FOC cable: 2.
Version of the FO conductor Fiber: POF FOC 980/1000 µm.
Outer diameter:
Of the optical Fibers: 980 µm.
Of the optical Fiber sheath: 1000 µm.
Of the FOC core sheath: 2.2 mm.
Symmetrical deviation / of the outer diameter of the FOC core sheath: 0.1 mm.
Outer diameter / of the cable: 8 mm.
Material:
Of the Fiber-optic cable core: Polymethylmethacrylate (PMMA).
Of the optical Fiber sheath: Fluoridated special polymer.
Of the FOC core sheath: PA.
Of the Fiber-optic cable sheath: PUR.
Of the strain relief: Kevlar Fibers.
Colour:
Of the FOC core sheath: orange/black.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 40 mm.
With multiple bends / minimum permissible: 55 mm.
With continuous bending: 55 mm.
Number of bending cycles: 5000000.
Number of torsion cycles / with torsion by ± 360° on 1 m cable length: 10000.
Tensile load:
During installation / short-term: 400 N.
During operation / maximum: 100 N.
Ambient temperature:
During operation: -20 ... +70 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: 5 ... 50 °C.
Chemical resistance:
To mineral oil: resistant.
To grease: resistant.
Radiological resistance / to UV radiation: resistant.
Product feature: silicon-free.
Wire length for POF FOC / for Industrial Ethernet / maximum: 50 m.
