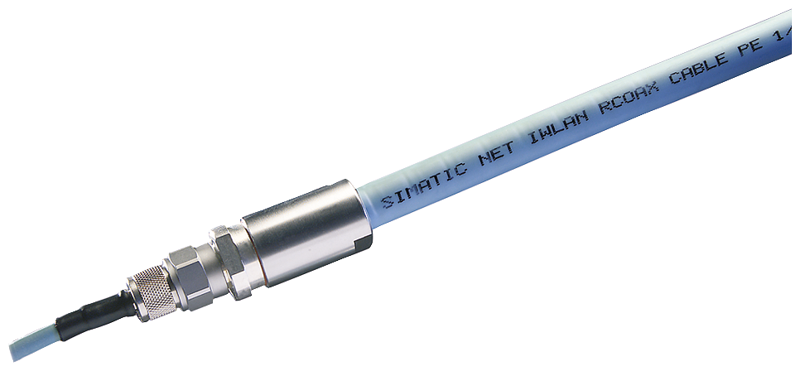

IWLAN RCoax Cable PE 1/2 inch, 2.4 GHz, long distance, -40 °C/+85 °C
SKU: 6XV1875-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is IWLAN RCoax Cable 2 GHz.
IWLAN RCoax cable PE 1/2 2.4 GHz long distance -40 °C/+85 °C extended temperature range.
Sold by the meter; minimum order quantity is 20 m.
Maximum delivery unit: 500 m.
Suitability for operation: For example, suspended monorails, cranes, and stacker cranes.
Line is water repellent, microbe resistant, and very resistant to a variety of cleaning and disinfecting agents.
Cleaning with a high-pressure cleaner weighing up to 50 kg.
Radio frequencies:
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.485 GHz.
Electrical data:
Impedance: 50 Ω.
Attenuation factor per length:
At 2.4 GHz / with cable mounted 10 mm above concrete / at 20 °C: 0.15 dB/m.
At 2.4 GHz / with cable mounted 15 mm above aluminum rail / at 20 °C: 0.17 dB/m.
Coupling attenuation:
At 2.4 GHz / at 20 °C: 35 dB.
Note: c(50) for distance of 10 cm between antenna and cable.
Capacity per length: 76 pF/m.
DC resistance per length:
Of inner conductor / at 20 °C: 1.48 Ω/km.
Of coaxial line conductor / at 20 °C: 2.8 Ω/km.
Relative speed: 88 %.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Outer diameter:
Of inner conductor: 4.8 mm.
Of dielectric: 12.4 mm.
Of cable sheath: 15.5 mm.
Thickness / of cable sheath: 1.3 mm.
Material:
Of inner conductor: Copper clad aluminium.
Of dielectric: Polyethylene foam.
Of coaxial line conductor: Overlapping copper foil with the slot groups bonded to cable jacket.
Of cable sheath: Halogen-free polyolefine.
Colour / of cable sheath: pastel turquoise.
Bending radius:
With single bend / minimum permissible: 200 mm.
Number of bending cycles: 1.
Tensile load / maximum: 1100 N.
Weight per length: 0.232 kg/m.
Mounting distance:
Recommended: 0.5 m.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -70 ... +85 °C.
During installation: -25 ... +60 °C.
Product feature / resistant to UV radiation: Yes.
Standards, specifications, approvals:
Standard:
For fire behaviour:
Corrosive gas emission: IEC 60754-2.
Smoke emission: IEC 60332-1 and IEC 60332-3 Cat. C.
Flame resistance: IEC 61034.
Certificate of suitability:
UL approval: Yes.
Wireless approval: Current national approvals can be found on the Internet under www.siemens.com/funkzulassungen.
Reference code / according to IEC 81346-2:2019: TFB.
