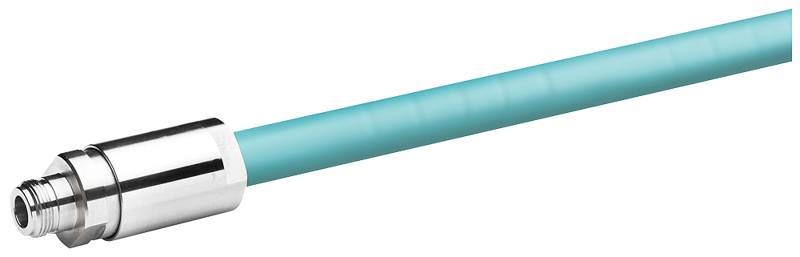

IWLAN RCoax Cable PE 1/2 inch, 5 GHz, short distance, -40 °C/+85 °C

Description: The product type designation is IWLAN RCoax Cable 5 GHz. IWLAN RCoax cable PE 1/2" 5 GHz long distance -40 °C/+85 °C extended temperature range. Sold by the meter; minimum order quantity is 20 m. Maximum delivery unit: 1000 m. Suitability for operation: For example, suspended monorails, cranes, and stacker cranes. Line is water repellent, microbe resistant, and very resistant to a variety of cleaning and disinfecting agents. Cleaning with a high-pressure cleaner weighing up to 50 kg. Radio frequencies: Operating frequency: For WLAN in 5 GHz frequency band 1: 5.15 - 5.85 GHz. Electrical data: Impedance: 50 Ω. Attenuation factor per length: At 5.15 GHz / with cable mounted 10 mm above concrete / at 20 °C: 0.23 dB/m. At 5.15 GHz / with cable mounted 15 mm above aluminium rail / at 20 °C: 0.24 dB/m. At 5.85 GHz / with cable mounted 10 mm above concrete / at 20 °C: 0.24 dB/m. At 5.85 GHz / with cable mounted 15 mm above aluminium rail / at 20 °C: 0.27 dB/m. Coupling attenuation: At 5.15 GHz / at 20 °C: 42 dB. At 5.85 GHz / at 20 °C: 40 dB. Note: c(50) for distance of 10 cm between antenna and cable. Capacity per length: 76 pF/m. DC resistance per length: Of inner conductor / at 20 °C: 1.48 Ω/km. Of coaxial line conductor / at 20 °C: 2.8 Ω/km. Relative speed: 88 %.
