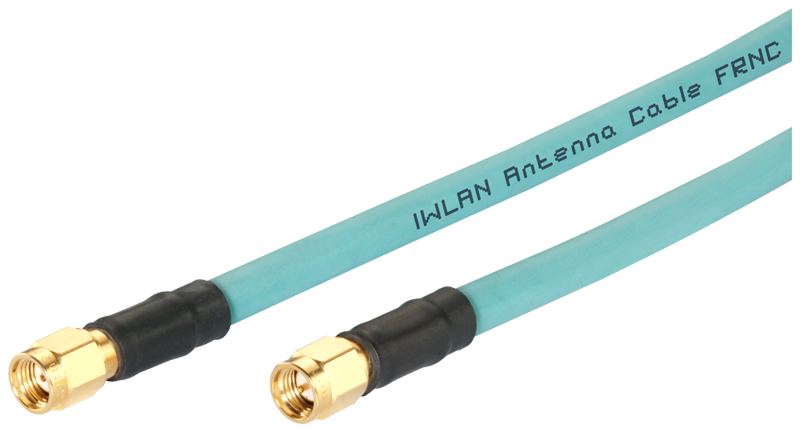

IWLAN 1x RSMA/1x SMA Male/Male flexible connection cable, 2 m
SKU: 6XV1875-5DH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IWLAN R-SMA/ SMA male/male flexible connection cable, pre-assembled, 2 m long, for components with R-SMA and SMA connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Flexible connecting cable for connecting a cabinet bushing with SMA connection to an access point/client.
Wire length: 2 m.
Number of electrical connections: 2.
Type of electrical connection: R-SMA/SMA male/male.
Transmission frequency: 0 ... 6000 MHz
Design of the shield: Braided shield made of tin-plated copper wires.
Outer diameter:
Of inner conductor: 1.4 mm.
Of dielectric: 3.8 mm.
Of cable sheath: 6.3 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Thickness / of cable sheath: 0.76 mm.
Material:
Of inner conductor: Cu.
Of dielectric: polyethylene foam.
Of cable sheath: FRNC.
Colour of cable sheath: pastel turquoise.
Bending radius:
With single bend / minimum permissible: 32 mm.
With multiple bends / minimum permissible: 45 mm.
Tensile load / maximum: 80 N.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -25 ... +80 °C.
Chemical resistance to mineral oil: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP68, when plugged in.
Product feature:
Halogen-free.
Silicon-free.
