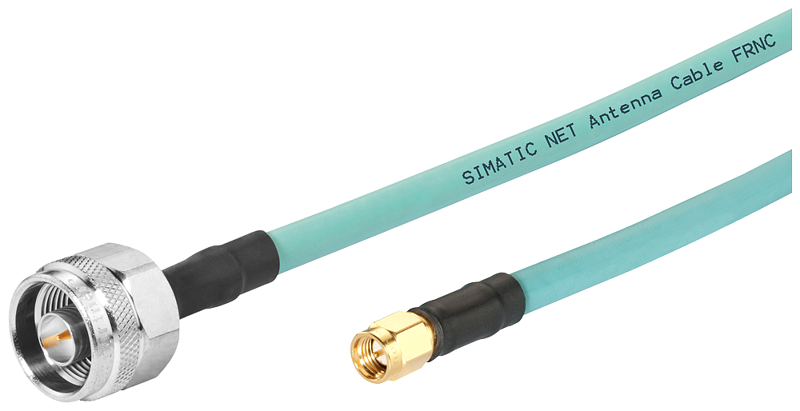

IWLAN 1x N-Connect/1x SMA Male/Male flexible connection cable, 2 m
SKU: 6XV1875-5LH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: antenna connection cable N-Connect/SMA plug/plug.
Product description: Pre-assembled connecting cable for SIMATIC NET antennas.
Pre-assembled N-Connect/SMA male/male flexible connection cable, 2 m in length, for the SCALANCE M antenna.
Suitability for use: Flexible connecting cable for connecting an antenna to SCALANCE M.
Wire length: 2 m.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Number of electrical connections: 2.
Type of electrical connection: N-Connect/SMA male/male.
Transmission frequency: 0 ... 6000 MHz.
Attenuation factor per length:
At 2.4 GHz / typical: 0.53 dB/m.
At 5.2 GHz / typical: 0.83 dB/m.
At 5.85 GHz / typical: 0.89 dB/m.
Return loss:
Minimum: 23 dB.
Impedance:
Rated value: 50 Ω.
Capacity per length / at 1 kHz: 82 pF/m.
Relative speed: 82 %.
Mechanical data:
Design of the shield: Braided shield made of tin-plated copper wires.
Outer diameter:
Of inner conductor: 1.4 mm.
Of dielectric: 3.8 mm.
Of cable sheath: 6.3 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Thickness / of cable sheath: 2.76 mm.
Material:
Of inner conductor: Cu.
Of dielectric: polyethylene foam.
Of cable sheath: FRNC.
Colour:
Of cable sheath: pastel turquoise.
Bending radius:
With single bend / minimum permissible: 32 mm.
With multiple bends / minimum permissible: 45 mm.
Tensile load / maximum: 80 N.
Weight per length: 75 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -25 ... +80 °C.
Chemical resistance:
To mineral oil: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: when plugged in.
Product features, product functions, product components / general:
Product feature:
Halogen-free: Yes.
Silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
EAC approval: Yes.
RoHS conformity: Yes.
Fire protection in accordance with EN 45545-2: No.
Standard:
For fire behaviour / flame resistance: UL 1685 (Vertical tray), UL 1581 Sec. 1090 (H).
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
