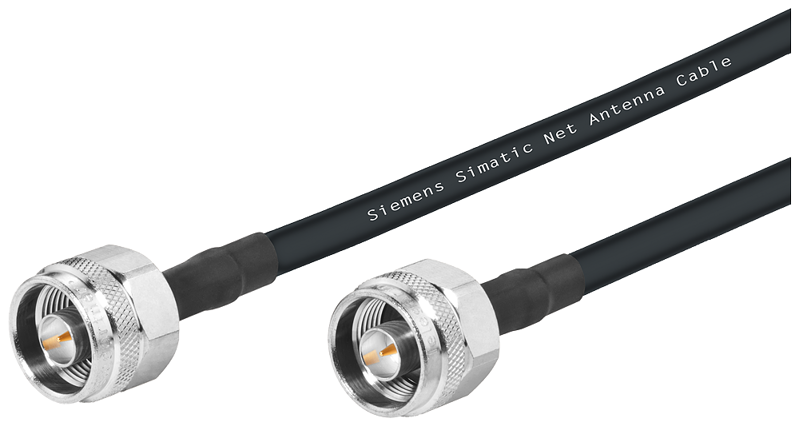

IWLAN 2x N-Connect Male/Male flexible connection cable, railway, 2 m
SKU: 6XV1875-5SH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
N-Connect male/male flexible connection cable, pre-assembled; length 2 m; suited for railway applications; flexible cable, for example, for antenna connections; suitable for IWLAN and mobile radio.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Flexible connecting cable for connecting an antenna or Rcoax cable to a SCALANCE M/W, suitable for railway applications.
Wire length: 2 m.
Number of electrical connections: 2.
Type of electrical connection: N-Connect/N-Connect male/male.
Transmission frequency: 0 ... 6000 MHz
Outer diameter:
Of inner conductor: 1.4 mm.
Of dielectric: 3.8 mm.
Of cable sheath: 5.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.1 mm.
Material:
Of inner conductor: Cu, silver plated.
Of dielectric: SPEX.
Of cable sheath: RADOX.
Colour of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 25 mm.
With multiple bends / minimum permissible: 90 mm.
Number of bending cycles: 50.
Ambient temperature:
During operation: -30 ... +100 °C.
During storage: -30 ... +100 °C.
During transport: -30 ... +100 °C.
Protection class IP: IP67, when plugged in.
Product feature:
Halogen-free.
Silicon-free.
