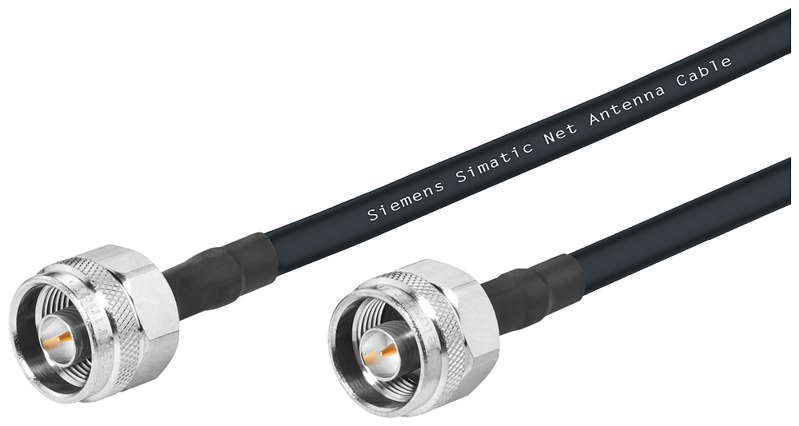

IWLAN 2x N-Connect Male/Male flexible connection cable, railway, 5 m
SKU: 6XV1875-5SH50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: antenna connection cable N-Connect plug/plug.
Product description: Pre-assembled connecting cable for SIMATIC NET antennas.
N-Connect male/male pre-assembled flexible connection cable, 5 m in length, ideal for railway applications; suited for IWLAN and mobile radio, flexible cable can also be used to connect to antennas.
Suitability for use: Flexible connecting cable for connecting an antenna or Rcoax cable to a SCALANCE M/W, suitable for railway applications.
Wire length: 5 m.
Electrical data:
Number of electrical connections: 2.
Type of electrical connection: N-Connect/N-Connect male/male.
Transmission frequency: 0 ... 6000 MHz.
Attenuation factor per length:
At 2.4 GHz / typical: 0.47 dB/m.
At 5.2 GHz / typical: 0.77 dB/m.
At 5.85 GHz / typical: 0.83 dB/m.
Impedance:
Rated value: 50 Ω.
Capacity per length / at 1 kHz: 80.2 pF/m.
Relative speed: 83 %.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Outer diameter:
Of inner conductor: 1.4 mm.
Of dielectric: 3.8 mm.
Of cable sheath: 5.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.1 mm.
Material:
Of inner conductor: Cu, silver plated.
Of dielectric: SPEX.
Of cable sheath: RADOX.
Colour:
Of cable sheath: Black.
Bending radius:
With single bend / minimum permissible: 25 mm.
With multiple bends / minimum permissible: 90 mm.
Number of bending cycles: 50.
Weight per length: 47.8 kg/km.
Ambient conditions:
Ambient temperature:
During operation: -30 ... +100 °C.
During storage: -30 ... +100 °C.
During transport: -30 ... +100 °C.
Protection class IP: IP67; when plugged in.
Product features, product functions, product components / general:
Product feature:
Halogen-free: Yes.
Silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability: fire protection according to NF F 16-101.
RoHS conformity: Yes.
Fire protection in accordance with EN 45545-2: Yes.
Standard:
For fire behavior / smoke emission: EN 61034-2.
For fire behavior / flame resistance: EN 60332-1-2, IEC 60332-3-22, EN 50305,9.1.2.
For fire behavior / toxic gas emission: NF-X 70-100.
Reference code:
According to IEC 81346-2: WG.
According to IEC 81346-2:2019: WGB.
