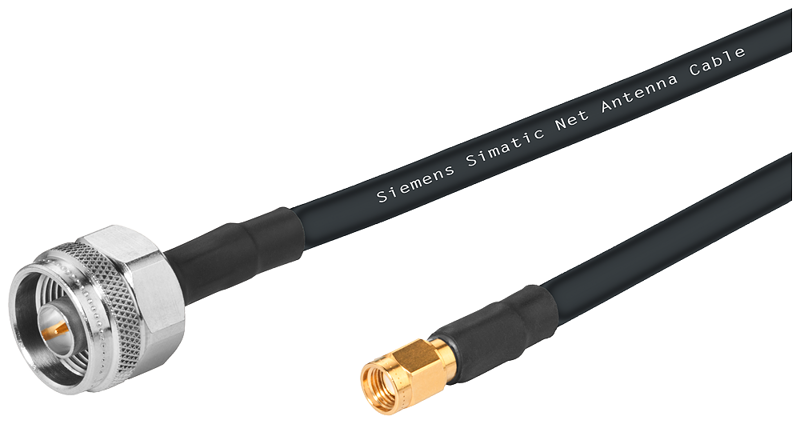

IWLAN 1x N-Connect/1x RSMA male/male flexible connection cable, railway, 3m
SKU: 6XV1875-5TH30
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: antenna connection cable N-Connect/RSMA plug/plug.
Product description: Pre-assembled connecting cable for SIMATIC NET antennas.
Pre-assembled N-Connect/R-SMA male/male flexible connection cable appropriate for railway applications, such as access point antennas. Length: 3 meters.
Suitability for use Flexible connecting cable for connecting an antenna or Rcoax cable to a SCALANCE M/W, suitable for railway applications.
wire length: 3 m.
Buy currently uses Select Automation shop pricing and checkout.
electrical data:
number of electrical connections: 2.
type of electrical connection: N-Connect/R-SMA male/male.
transmission frequency: 0 ... 6000 MHz.
attenuation factor per length:
at 2.4 GHz / typical: 0.47 dB/m.
at 5.2 GHz / typical: 0.77 dB/m.
at 5.85 GHz / typical: 0.83 dB/m.
impedance:
rated value: 50 Ω.
capacity per length / at 1 kHz: 80.2 pF/m.
relative speed: 83 %.
mechanical data:
outer diameter:
of inner conductor: 1.4 mm.
of dielectric: 3.8 mm.
of cable sheath: 5.5 mm.
symmetrical tolerance of the outer diameter / of cable sheath: 0.1 mm.
material:
of inner conductor: Cu, silver plated.
of dielectric: SPEX.
of cable sheath: RADOX.
colour:
of cable sheath: Black.
bending radius:
with single bend / minimum permissible: 25 mm.
with multiple bends / minimum permissible: 90 mm.
number of bending cycles: 50.
weight per length: 47.8 kg/km.
ambient conditions:
ambient temperature:
during operation: -30 ... +100 °C.
during storage: -30 ... +100 °C.
during transport: -30 ... +100 °C.
protection class IP: IP67; when plugged in.
product features, product functions, product components / general:
product feature:
halogen-free: Yes.
silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability: fire protection according to NF F 16-101.
RoHS conformity: Yes.
fire protection in accordance with EN 45545-2: Yes.
standard:
for fire behaviour / smoke emission: EN 61034-2.
for fire behaviour / flame resistance: EN 60332-1-2, IEC 60332-3-22, EN 50305,9.1.2.
for fire behaviour / toxic gas emission: NF-X 70-100.
reference code:
according to IEC 81346-2: WG.
according to IEC 81346-2:2019: WGB.
