Siemens S7-1500 IE FC TP Standard Cable GP 4x2, AWG24, for connection to IE FC RJ45 Plug 4x2
SKU: 6XV1878-2A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

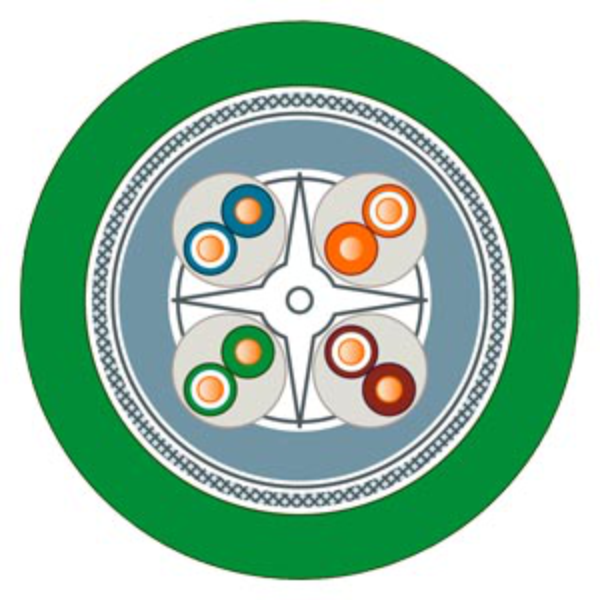

This is a shielded, 8-core twisted pair CAT6A cable with AWG24 solid conductors, optimized for Fast Connect (FC) assembly.
It is old by the meter and supports 100BaseTX, 1000BaseT, and 10GBaseT Ethernet, making it ideal for structured cabling between RJ45 plugs, switches, and field devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Cable Type: IE FC TP Standard Cable GP 4x2 (AWG24).
Category: CAT6A.
Conductor Type: Solid (rigid).
Shielding: Foil + braided copper screen.
Outer Diameter: 8 mm.
Bending Radius: 24 mm (single), 40 mm (multiple).
Tensile Load: 100 N.
Flame Resistance: IEC 60332-3-24 (Category C).
UV & Oil Resistance: Yes (IEC 60811-2-1 compliant).
Operating Temp: –40 °C to +85 °C.
Ethernet Support: 100BaseTX: 100 m, 1000BaseT: 90 m, 10GBaseT: supported.
PoE / PoE+ / PoE++ Support: Yes.
Fast Connect Compatible: Yes.
Weight: ~74.5 kg/km.
