IE FC TP standard cable GP (type C) 4x2, AWG 24, CAT6A, sold by meter, min. 20 m
SKU: 6XV1878-2AU10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Shielded TP installation cable (8 wires), desired length, unassembled.
IE Fast Connect TP standard GP cable 4x2 (Type C); TP installation cable CAT6A for connection to IE FC RJ45 Plug 4x2; AWG24; 1000-meter delivery unit.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Standard cable with rigid cores for fast, permanent installation.
Wire length: 1000 m.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 20 mΩ/m.
Loop resistance per length / maximum: 190 mΩ/m.
Operating voltage / maximum: 80 V.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 8.

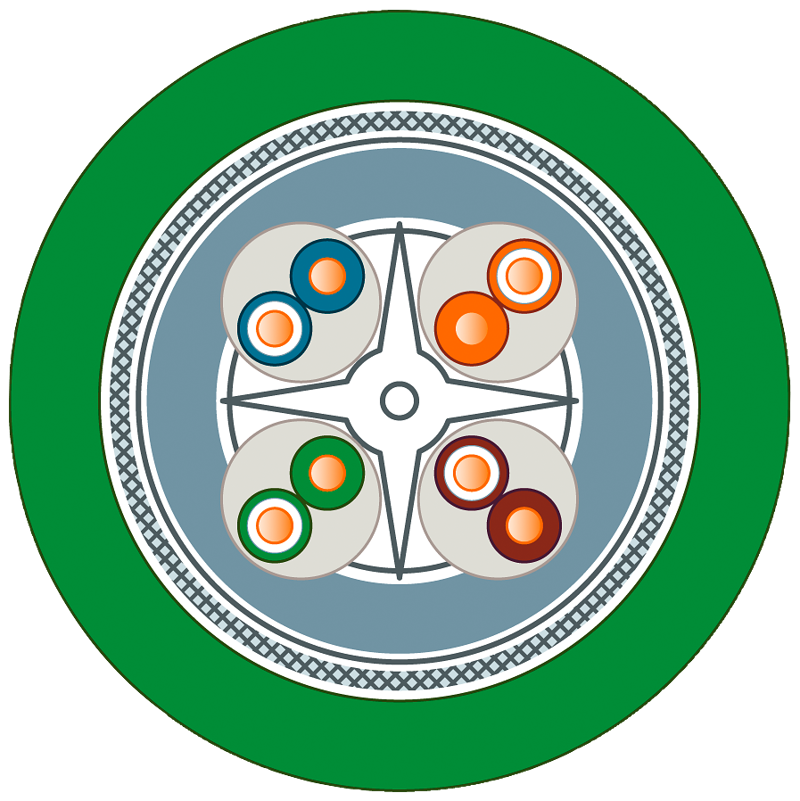

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG24 insulated conductor: 0.51 mm.
Outer diameter:
Of inner conductor: 0.51 mm.
Of the wire insulation: 1 mm.
Of the inner sheath of the cable: 6.1 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white, blue/blue, white, orange/orange, white, green/green, white, brown/brown.
Of cable sheath: Green.
Bending radius:
With single bend / minimum permissible: 24 mm.
With multiple bends / minimum permissible: 40 mm.
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Ambient condition / for operation: Temperature range for permanent installation -40 °C to +85 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product feature: Silicon-free.
Wire length / for Industrial Ethernet:
With 100BaseTX: 100 m.
With 1000BaseT: 100 m.
For 10GBase T: 90 m.
