IE FC TP trailing cable GP (type C) 4x2, AWG24, CAT6A, sold by meter, min. 20 m
SKU: 6XV1878-2C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Shielded TP installation cable (8-core) with flexible cores is offered per meter and unassembled.
Industrial Ethernet Fast Connect TP flexible cable GP 4x2, TP installation CAT6A cable for connection to IE FC RJ45 connector 4x2, AWG24, available by the meter, delivery unit up to 1000 m, minimum order quantity 20 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Flexible cable for fast installation, for installation in trailing cables.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 80 mΩ/m.
Loop resistance per length / maximum: 180 mΩ/m.
Operating voltage, RMS value: 80 V.
Operating voltage, maximum: 80 V.
Mechanical data:
Number of electrical cores: 8.

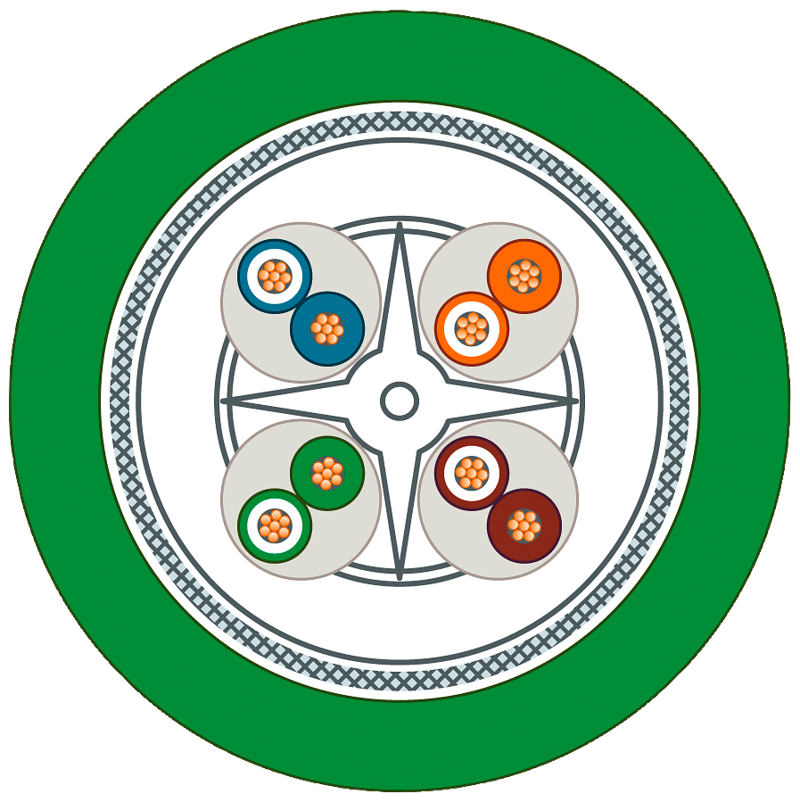

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG24 insulated conductor: 0.51 mm.
Outer diameter:
Of inner conductor: 0.58 mm.
Of the wire insulation: 1.04 mm.
Of the inner sheath of the cable: 6.5 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: PUR.
Colour:
Of the insulation of data wires: white, blue/blue, white, orange/orange, white, green/green, white, brown/brown.
Of cable sheath: Green.
Bending radius:
With single bend / minimum permissible: 32 mm.
With multiple bends / minimum permissible: 64 mm.
With continuous bending: 120 mm.
Number of bending cycles: 1000000; For use in trailing cables, with a bending radius of 120 mm, a speed of 4 m/s, and an acceleration of 4 m/s².
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -30 ... +70 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -30 ... +70 °C.
In fixed installation: -40 °C to 80 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-404 (7x24h/90°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: Resistant.
Product feature:
Halogen-free.
Silicon-free.
Wire length / for Industrial Ethernet:
With 100BaseTX: 100 m.
With 1000BaseT: 100 m.
For 10GBase T: 80 m.
