IE FC TP ground cable GP (type C) 4x2, AWG24, CAT6A, sold by the meter, min. 20m
SKU: 6XV1878-2G
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Shielded TP installation cable (8-core) with flexible cores is sold per meter and comes unassembled.
IE TP ground cable 4x2 underground cable, CAT6A, 8-core, insulated, cable to connect to IE FC RJ45 socket 4x2, AWG24, Sold by the meter, with a delivery unit limit of 1000 m and a minimum order quantity of 20 meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Standard cable with rigid cores for fast, permanent installation outdoors and in the ground.
Electrical data:
Impedance: 100 Ω.
Transfer impedance per length / at 10 MHz: 20 mΩ/m.
Loop resistance per length / maximum: 190 mΩ/m.
Operating voltage, RMS value: 80 V.
Mechanical data:
Number of electrical cores: 8.

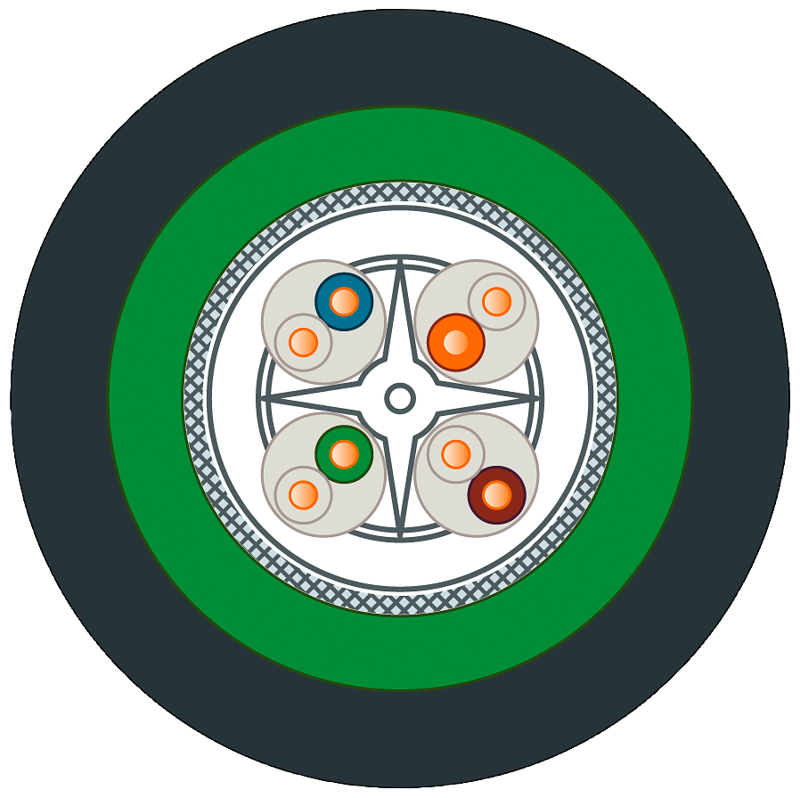

Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG24 insulated conductor: 0.51 mm.
Outer diameter:
Of inner conductor: 0.51 mm.
Of the wire insulation: 1 mm.
Of the inner sheath of the cable: 6.1 mm.
Of cable sheath: 10.5 mm, IE FC standard cable GP 4x2 (diameter 8 mm) with additional PE outer cover (diameter 10.5 mm).
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white, blue/blue, white, orange/orange, white, green/green, white, brown/brown.
Of cable sheath: green/black.
Bending radius:
With single bend / minimum permissible: 42 mm.
With multiple bends / minimum permissible: 84 mm.
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
In fixed installation: -40 °C to 85 °C.
Chemical resistance to water: Resistant.
Radiological resistance / to UV radiation: Resistant.
Product feature: Silicon-free.
Wire length / for Industrial Ethernet:
With 100BaseTX: 90 m.
With 1000BaseT: 90 m.
For 10GBase T: 70 m.
