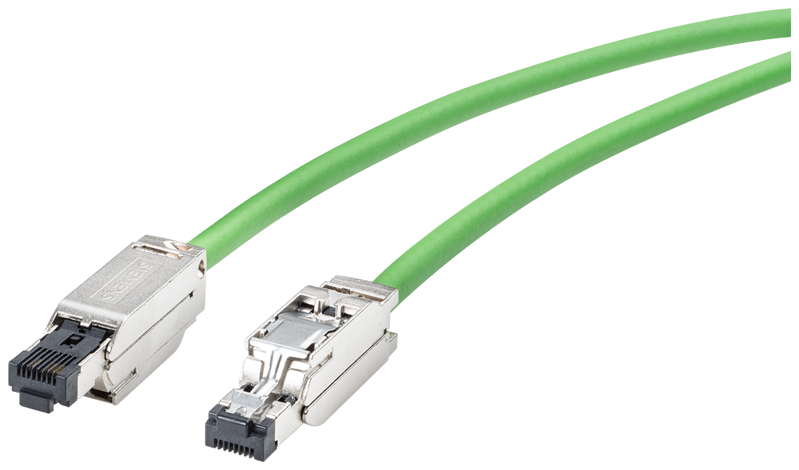

IE cable 4x2, 2x IE FC RJ45 plug 180 4x2, CAT6A, IP20, 25 m
SKU: 6XV1878-5BN25
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (8 wires), desired length, prefabricated with two IE FC RJ45 connectors (4X2).
IE connection wire.
IE FC RJ45 Plug-180 (IE FC RJ45 Plug-180).
IE FC flexible GP 4x2 cable pre-assembled with two IE FC RJ45 plugs 180 4 x 2: length 25 m.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting Industrial Ethernet stations with an RJ45 interface (10/100/1000/10000Mbps).
Wire length: 25 m.
Number of electrical connections: 2.
Operating voltage (RMS value): 80 V.
Number of electrical cores: 8.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG24 insulated conductor: 0.51 mm.
Outer diameter:
Of inner conductor: 0.6 mm.
Of the wire insulation: 1.05 mm.
Of the inner sheath of the cable: 6.4 mm.
Of cable sheath: 8 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: FRNC.
Of cable sheath: PVC.
Colour:
Of the insulation of data wires: white, blue/blue, white, orange/orange, white, green/green, white, brown/brown.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 24 mm.
With multiple bends / minimum permissible: 40 mm.
Tensile load / maximum: 100 N.
Design of plug-in connection: RJ45-180.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Product feature: silicon-free.
Wire length / for Industrial Ethernet:
With 100BaseTX: 80 m.
With 1000BaseT: 80 m.
For 10GBase T: 70 m.
