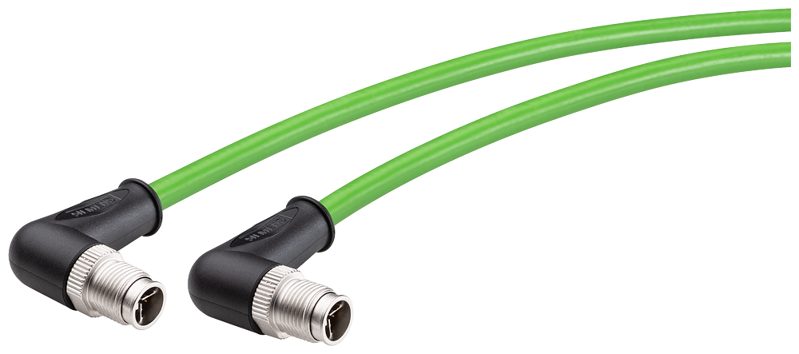

IE TP Cord M12-90/M12-90, 4x2, 2x M12 plug (X-coded), 1.5 m
SKU: 6XV1878-5GH15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (8 wires), desired length, prefabricated with two IE FC M12 connectors 4X2 (X-coded).
IE TP Cord M12-90/M12-90 is a pre-assembled IE Flexible Cable with two M12 connections (X-coded), a 90-degree cable outlet, and a length of 1.5 meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting Industrial Ethernet stations with an M12 interface (e.g. SCALANCE W and XP-200).
Wire length: 1.5 m.
Number of electrical connections: 2.
Operating voltage (RMS value): 80 V.
Number of electrical cores: 8.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG26 insulated conductor: 0.48 mm.
Outer diameter:
Of the wire insulation: 1 mm.
Of the inner sheath of the cable: 5.4 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PUR.
Colour:
Of the insulation of data wires: white/blue, white/orange, white/green, white/brown.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 65 mm.
Tensile load / maximum: 100 N.
Type of plug interlock: screwed.
Design of plug-in connection: M12-90.
Connector coding of the M12 circular connector: X-coded.
Ambient temperature:
During operation: -30 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Chemical resistance:
To mineral oil: oil resistant according to DIN EN 60811-2-1.
To grease: Conditional resistance.
To water: Conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65, IP67.
Product feature:
Halogen-free.
Silicon-free.
