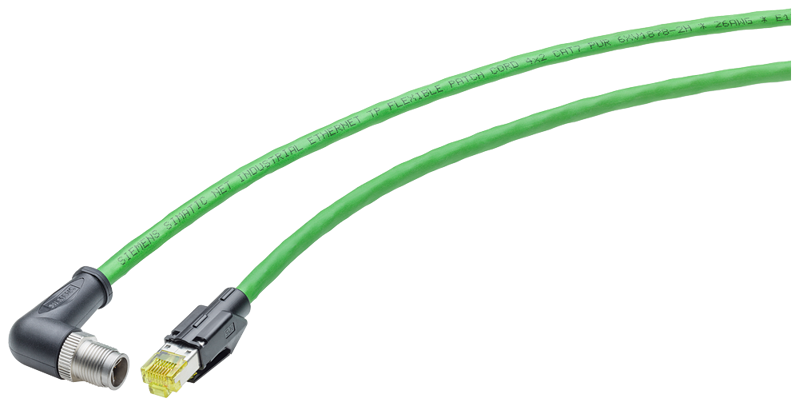

IE TP Cord M12-90/RJ45-180, 1x M12 plug (X-coded), 1xRJ45 plug, 15m
SKU: 6XV1878-5SN15
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flexible plug-in cable (8-wire), desired length, pre-assembled with 1 x IE M12 plug 4X2, X-coded, 90° cable outlet, and 1 × RJ45 connector 4x2, 180° cable outlet.
IE TP Cord M12-90/RJ45-180 is a 15.0m flexible cable with one M12 plug.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting Industrial Ethernet stations with an M12 interface (e.g. SCALANCE W and SCALANCE X).
Wire length: 15 m.
Number of electrical connections: 2.
Operating voltage, RMS value: 80 V.
Number of electrical cores: 8.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG26 insulated conductor: 0.48 mm.
Outer diameter:
Of the wire insulation: 1 mm.
Of the inner sheath of the cable: 5.4 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.3 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of cable sheath: PUR.
Colour:
Of the insulation of data wires: white/blue, white/orange, white/green, white/brown.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 32.5 mm.
With multiple bends / minimum permissible: 65 mm.
Tensile load / maximum: 100 N.
Ambient temperature:
During operation: -30 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Chemical resistance:
To mineral oil: oil resistant according to DIN EN 60811-2-1.
To grease: conditional resistance.
To water: conditional resistance.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65/67 (M12), IP20 (RJ45).
Product feature:
Halogen-free.
Silicon-free.
