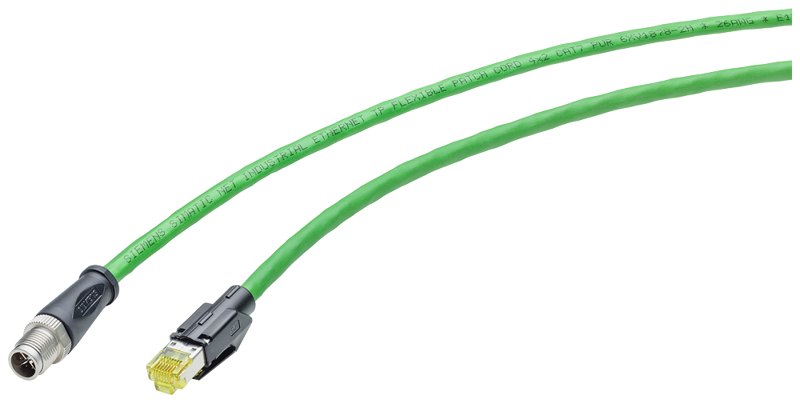

IE TP Cord M12-180/RJ45-180, 1x M12 plug (X-coded), 1xRJ45 plug, 2 m
SKU: 6XV1878-5TH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE TP Cord M12-180/RJ45-180.
Product Description: Flexible plug-in cable (8-wire), desired length, pre-assembled with 1 x IE M12 plug 4X2, X-coded, 180° cable outlet, and 1 x RJ45 connection; 4x2, 180° cable outlet.
IE TP Cord M12-180/RJ45-180 is a pre-assembled IE Flexible Cable with 1x M12 plug (X-coded), 180-degree cable outlet, 1x RJ45 plug, 180-degree cable outlet, and a length of 2.0 meters.
Suitability for use: For connecting Industrial Ethernet stations with an M12 interface (e.g. SCALANCE W and SCALANCE X).
wire length: 2 m.
electrical data:
number of electrical connections: 2.
attenuation factor per length:
at 10 MHz / maximum: 0.086 dB/m.
at 100 MHz / maximum: 0.28 dB/m.
at 300 MHz / maximum: 0.402 dB/m.
at 600 MHz / maximum: 0.735 dB/m.
impedance:
at 1 MHz ... 100 MHz: 100 Ω.
near-end crosstalk per length:
at 100 MHz 0.724 dB/m.
at 300 MHz 0.653 dB/m.
at 600 MHz 0.608 dB/m.
loop resistance per length / maximum: 290 mΩ/m.
insulation resistance coefficient: 5000 GΩ·m.
operating voltage:
RMS value: 80 V.
NVP value in percent: 68 %.
