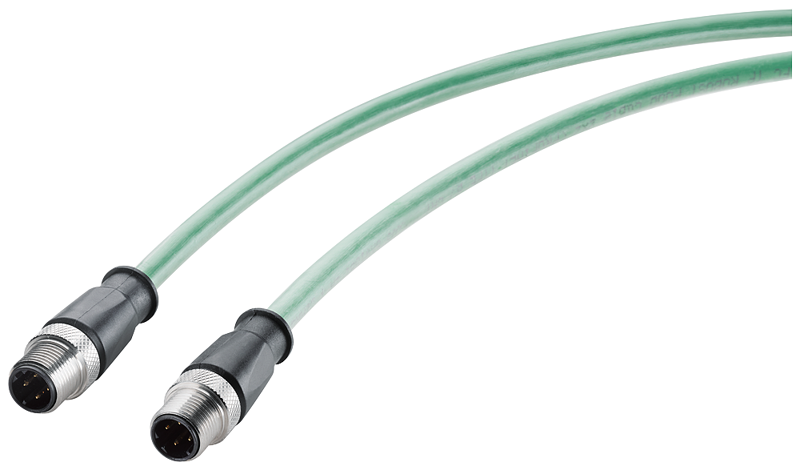

IE robust cable M12-180/M12-180 2x2, 2x M12 plug (D-coded), CAT5e, IP69, 2 m
SKU: 6XV1881-5AH20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Preassembled with two 4-pole M12 connectors (D-coded), this robust, flexible connecting cable (4-core) comes in your desired length.
IE Robust Connecting Cable M12-180/M12-180, IP69, pre-assembled IE FC Robust Food Cable GP 2x2, with 2 M12 plugs (D-coded), length 2 meter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting Industrial Ethernet stations with degree of protection IP65/67/69. Cable with FEP jacket (fluorinated plastic, per fluoroethylene propylene) for use in the food, beverages and tobacco industries.
Wire length: 2 m.
Number of electrical connections: 2.
Operating voltage (RMS value): 80 V.
Number of electrical cores: 4.
Design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
Core diameter of AWG22 insulated conductor: 0.75 mm.
Outer diameter:
Of inner conductor: 0.75 mm
Of the wire insulation: 1.56 mm.
Of the inner sheath of the cable: 4 mm.
Of cable sheath: 6.5 mm.
Symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
Material:
Of the wire insulation: polyethylene (PE).
Of the inner sheath of the cable: PVC.
Of cable sheath: PVC/FEP; FEP transparent.
Colour:
Of the insulation of data wires: white/yellow/blue/orange.
Of cable sheath: green.
Bending radius:
With single bend / minimum permissible: 26 mm.
With multiple bends / minimum permissible: 52 mm.
With continuous bending: 100 mm.
Number of bending cycles: 1000000; Acceleration 4 m/s².
Number of torsion cycles / with torsion by ± 180° on 1 m cable length: 1000000.
Tensile load / maximum: 150 N.
Type of plug interlock: screwed.
Design of plug-in connection: M12-180.
Connector coding of the M12 circular connector: D-coded.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
During installation: -40 ... +80 °C.
Chemical resistance:
To mineral oil: oil resistant according to IEC 60811-404 (7x24h/90°C).
To grease: Conditional resistance.
To water: resistant.
Radiological resistance / to UV radiation: resistant.
Protection class IP: IP65/67/69.
Product feature: Silicon-free.
