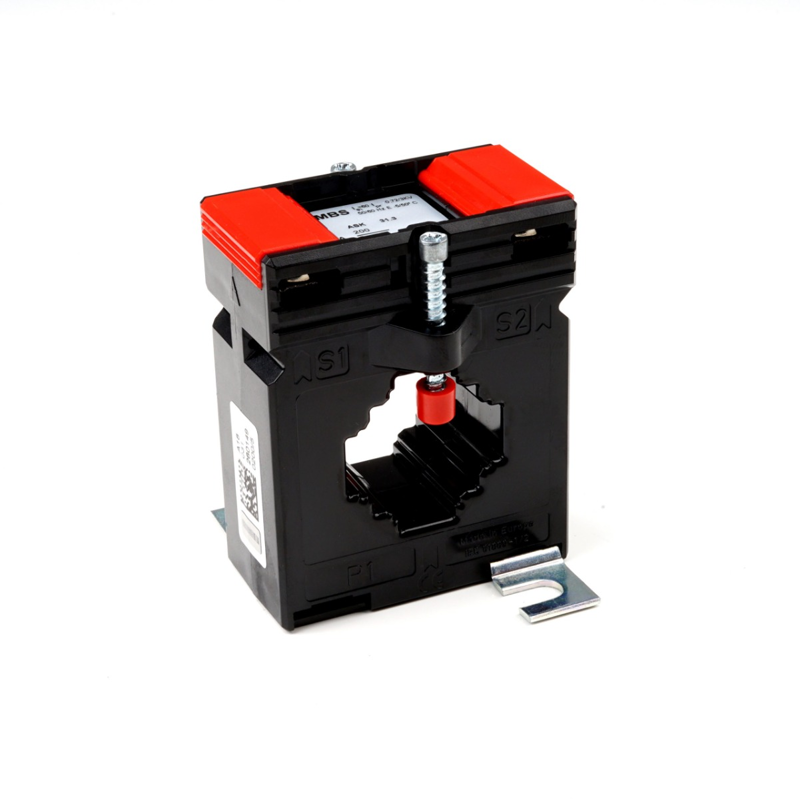

ASK 31.3 100/5A CT cl 1
SKU: 7045
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers of current general parameters:
Category of isolation: E
Maximum operational voltage: < 0.72 kV; nominal frequency: 50 Hz (other frequencies upon request).
For thermal short-time current, the nominal value is Ith = 60 x In.
Up to 1500 A nominal current, the over-current limiting factor (FS 5)
All MBS AG current transformers adhere to: DIN 42600, IEC 61869/1+2, VBG 4, and DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Busbar mounted current transformers (5A secondary - class 1)
MODEL: ASK 31.3
RATIO: 100/5A
ROUND CONDUCTOR (⌀): 26 mm
PRIMARY BAR CONDUCTOR: 30 X 10 / 20 X 20 mm
DESCRIPTION: Standard current transformer
CLASS: 1
VA: 2.5
DIMENSIONS (MM): (H) 76 x (W) 61 x (D) 48
