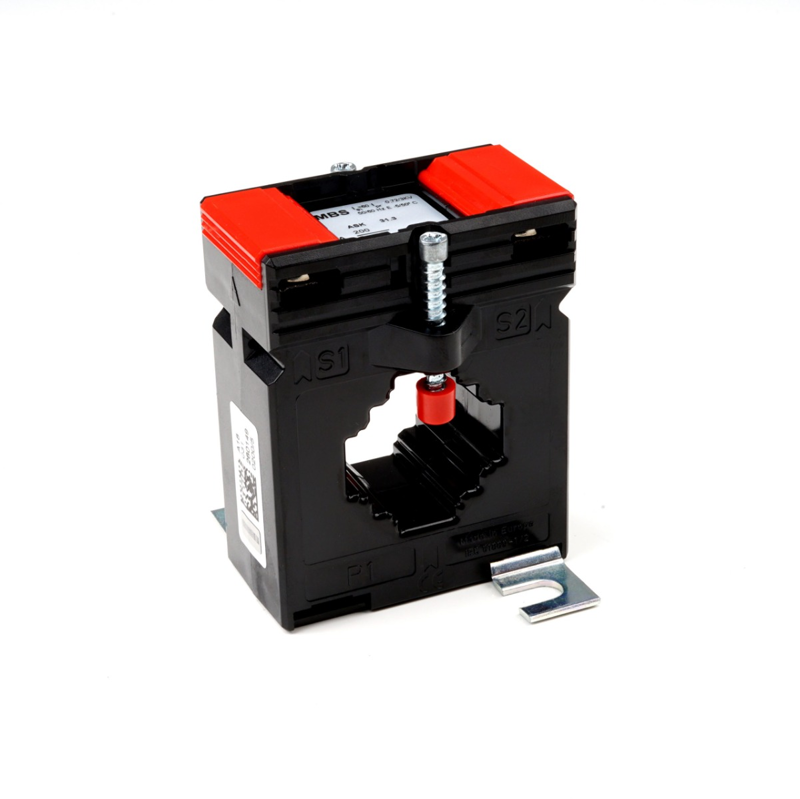

ASK 31.3 150/5A CT cl 1
SKU: 7047
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Transformers of current overall characteristics:
E is the isolation class.
Nominal frequency: 50Hz (others per request)
Maximum operating voltage: Um ≤ 0.72 kV
Thermal short-time current nominal: Ith = 60 x In
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers completely abide by: IEC 61869/1+2 - DIN 42600 - VBG 4 - DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Busbar mounted current transformers (5A secondary - class 1)
MODEL: ASK 31.3
RATIO: 150/5A
ROUND CONDUCTOR (⌀): 26 mm
PRIMARY BAR CONDUCTOR: 30 X 10 / 20 X 20 mm
DESCRIPTION: Standard current transformer
CLASS: 1
VA: 2.5
DIMENSIONS (MM): (H) 76 x (W) 61 x (D) 48
