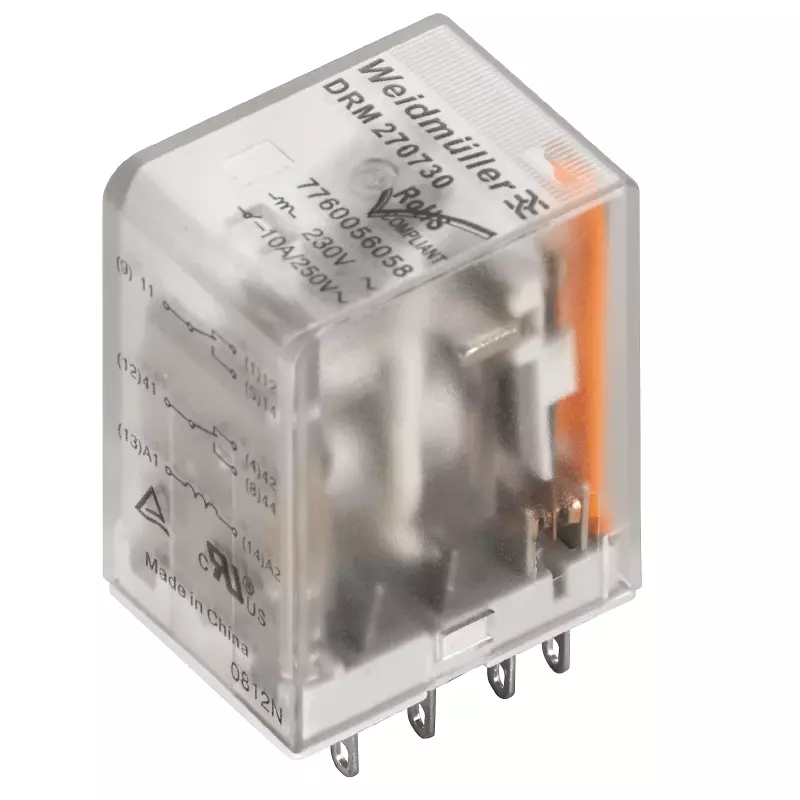

DRM270024

SPECIFICATIONS DIMENSIONS AND WEIGHTS: DEPTH: 35.7 MM. DEPTH (INCHES): 1.406 INCH. HEIGHT: 27.4 MM. HEIGHT (INCHES): 1.079 INCH. WIDTH: 21 MM. WIDTH (INCHES): 0.827 INCH. NET WEIGHT: 34.95 G. TEMPERATURES: STORAGE TEMPERATURE: -40 °C...70 °C. OPERATING TEMPERATURE: -40 °C...60 °C. HUMIDITY: 35...85 % REL. HUMIDITY, NO CONDENSATION. RATED DATA UL: CERTIFICATE NO. (CURUS): E312083. CONTROL SIDE: RATED CONTROL VOLTAGE: 24 V DC. RATED CURRENT DC: 37.8 MA. POWER RATING: 0.9 W. COIL RESISTANCE: 650 Ω ± 10 %. COIL TOLERANCE: 10 %. STATUS INDICATOR: NO. LOAD SIDE: RATED SWITCHING VOLTAGE: 250 V AC. CONTINUOUS CURRENT: 10 A. MAX. SWITCHING FREQUENCY AT RATED LOAD: 0.1 HZ. MAX. SWITCHING VOLTAGE, AC: 250 V. MIN. SWITCHING POWER: 10 MA @ 12 V, 100 MA @ 5 V. INRUSH CURRENT: 20 A / 50 MS. AC SWITCHING CAPACITY (RESISTIVE), MAX.: 2500 VA. DC SWITCHING CAPACITY (RESISTIVE), MAX.: 240 W @ 24 V. SWITCH-ON DELAY: < 20 MS. SWITCH-OFF DELAY: < 20 MS. CONTACT TYPE: 2 CO CONTACT (AGNI FLASH GOLD-PLATED). MECHANICAL SERVICE LIFE: 20 X 106 SWITCHING CYCLES. GENERAL DATA: TEST BUTTON AVAILABLE: NO. MECHANICAL SWITCH POSITION INDICATOR: YES. COLOUR: TRANSPARENT. UL94 FLAMMABILITY RATING COMPONENT: COMPONENT: RELAY COVER. UL94 FLAMMABILITY RATING: V-2. COMPONENT: RELAY BASEPLATE. UL94 FLAMMABILITY RATING: V-0. COMPONENT: RELAY STATUS INDICATOR. UL94 FLAMMABILITY RATING: HB. INSULATION COORDINATION: RATED VOLTAGE: 250 V. POLLUTION SEVERITY: 2. SURGE VOLTAGE CATEGORY: III. CLEARANCE AND CREEPAGE DISTANCES FOR CONTROL SIDE - LOAD SIDE: ≥ 5.5 MM. DIELECTRIC STRENGTH FOR CONTROL SIDE - LOAD SIDE: 1.8 KVEFF /1 MIN. DIELECTRIC STRENGTH OF NEIGHBOURING CONTACTS: 1 KVEFF / 1 MIN. DIELECTRIC STRENGTH OF OPEN CONTACT: 1 KVEFF / 1 MIN. IMPULSE WITHSTAND VOLTAGE: 6 KV (1.2/50 µS). PROTECTION DEGREE: IP20. FURTHER DETAILS OF APPROVALS / STANDARDS: CERTIFICATE NO.(CURUS): E312083. CONNECTION DATA: WIRE CONNECTION METHOD: PLUG-IN CONNECTION.
