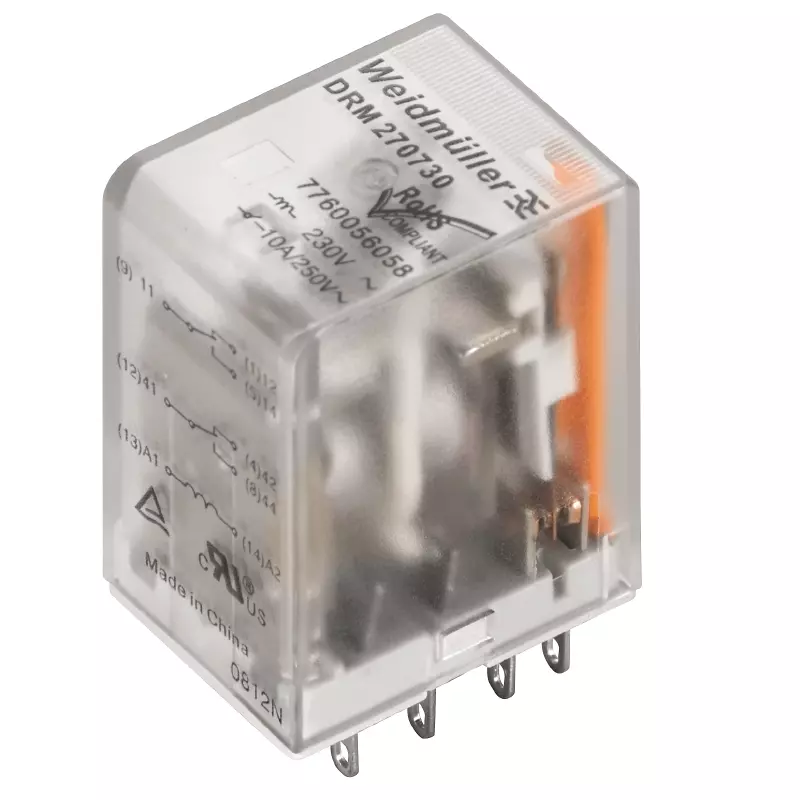

DRM270730

Specifications dimensions and weights: Depth: 35.7 mm. Depth (inches): 1.406 inch. Height: 27.4 mm. Height (inches): 1.079 inch. Width: 21 mm. Width (inches): 0.827 inch. Net weight: 32.95 g. Temperatures: Storage temperature: -40 °C - 70 °C. Operating temperature: -40 °C - 55 °C. Humidity: 35 - 85 % rel. humidity, no condensation. Rated data UL: Certificate No. (cURus): E312083. Control side: Rated control voltage: 230 V DC. Rated current AC: 6.1 mA (50 Hz), 5.2 mA (60 Hz) Power rating: 1.0 - 1.2VA (60HZ). Coil resistance: 16000 Ω ± 10 %. Coil tolerance: 10 %. Status indicator: No. Load side: Rated switching voltage: 250 V AC. Continuous current: 10 A. Max. switching frequency at rated load: 0.1 Hz. Min. switching power: 10 mA @ 12 V, 100 mA @ 5 V. Inrush current: 20 A / 50 ms. AC switching capacity (resistive), max.: 2500 VA. DC switching capacity (resistive), max.: 240 W @ 24 V. Switch-on delay: < 20 ms. Switch-off delay: < 20 ms. Contact type: 2 CO contact (AgNi flash gold-plated). Mechanical service life: 20 x 106 switching cycles. General data: Test button available: No. Mechanical switch position indicator: Yes. Colour: Transparent. UL94 flammability rating component: Component: Relay cover. UL94 flammability rating: V-2. Component: Relay baseplate. UL94 flammability rating: V-0. Component: Relay status indicator. UL94 flammability rating: HB. Insulation coordination: Rated voltage: 250 V. Pollution severity: 2. Surge voltage category: III. Clearance and creepage distances for control side - load side: ≥ 5.5 mm. Dielectric strength for control side - load side: 1.8 kVeff /1 min. Dielectric strength of neighbouring contacts: 1 kVeff / 1 min. Dielectric strength of open contact: 1 kVeff / 1 min. Impulse withstand voltage: 6 kV (1.2/50 µs). Protection degree: IP20. Further details of approvals / standards: Certificate No.(cURus): E312083. Connection data: Wire connection method: Plug-in connection.
